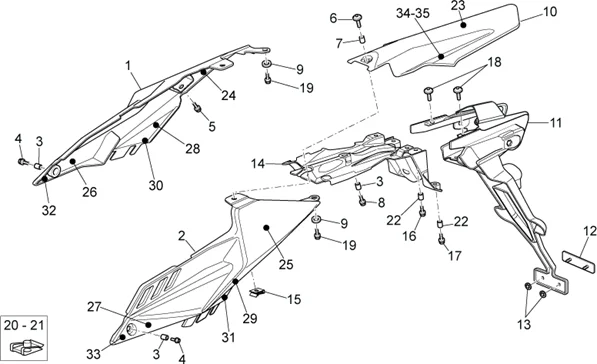

Chassis : 28.15 CARROSSERIE POSTERIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/627/RXV_450_Pikes_Peak_2009_28.15.PNG)
1 |
AILE ARRIERE DROITE ORIGINE PIAGGIO APRILIA 450-550 SXV, RXV -AP8184497- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/1/3/0/img/97130.jpg)
2 |
AILE/FLANC ARRIERE GAUCHE ORIGINE PIAGGIO APRILIA 450-550 SXV, RXV 2009>2011 -AP8184496 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/9/7/img/72597.jpg)
3 |
RONDELLE EN T (10X16X3,5) POUR VIS DE 6 ORIGINE PIAGGIO COMMUN A LA GAMME -AP9100053 Plus d'informationsQuantité requise : 3 |
||||||
|
4 |
AP9100645 - VITE TE FLANGIATA M6X16 INOX Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
5 |
VIS BRIDE TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152280 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
6 |
VIS BTR TETE BOMBEE (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152117 Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP9100594 - BUSSOLA COLLETTO D16-D10-SP7 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
8 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152279 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
9 |
RONDELLE PLATE (6.6X18X1.6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150015 Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
AP8156337 - GARDE-BOUE ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/3/8/1/img/97381.jpg)
11 |
BAVETTE ARRIERE ORIGINE PIAGGIO APRILIA 450-550 RXV, SXV 2009>2011 -AP9100610 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
AP8112202 - CATADIOPTRE ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
13 |
RONDELLE ELASTIQUE (5) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -AP8150450 Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
AP9100288 - SOTTOCODA Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
15 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152279 Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152279 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
18 |
VIS BTR TETE BOMBEE (5X9) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO -AP8152339 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
19 |
VIS BRIDE TH (6X12) ORIGINE PIAGGIO COMUUN A LA GAMME -AP8152277 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
20 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375 Plus d'informationsQuantité requise : 4 |
||||||
|
21 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
22 |
DOUILLE EN T INTERIEUR 5 MM ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121795 Plus d'informationsQuantité requise : 2 |
||||||
|
23 |
856363 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
24 |
DECO COQUE ARRIERE DROITE ORIGINE PIAGGIO APRILIA 450-550 SXV, RXV -856352- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/8/3/9/img/96839.jpg)
25 |
AUTOCOLLANT/STICKER/DECOR COQUE ARRIERE GAUCHE ORIGINE PIAGGIO APRILIA 450-550 SXV, RXV -856353 Plus d'informationsQuantité requise : 1 |
||||||
|
26 |
894644 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
27 |
894645 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
28 |
894648 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
29 |
894649 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
30 |
894650 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
31 |
894651 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
32 |
894646 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
33 |
894647 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
34 |
856364 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
35 |
856365 - DECALCO Plus d'informationsQuantité requise : 1 |
