Eclatés de véhicule - APRILIA RSV2 1000 RSV 1000 2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

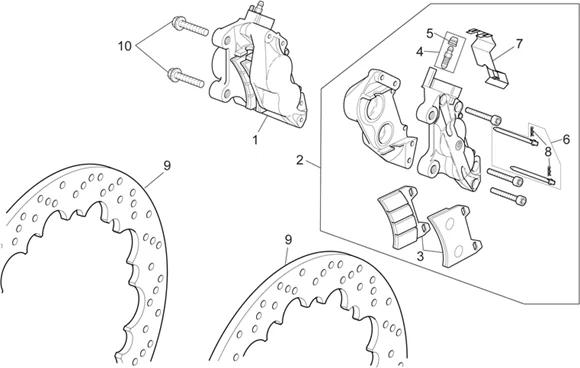

Chassis : 28.40 PINCE FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/744/RSV_1000_2000_28.40.PNG)
1 |
AP8113892 - MACHOIRE FREIN AV D OR Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
Mâchoire frein AV G or |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/2/3/img/71323.jpg)
3 |
PLAQUETTES DE FREIN AVANT ORIGINE PIAGGIO APRILIA 1000 RSV-2, TUONO V2, FUTURA, FALCO -AP8113754- Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
AP8213193 - PURGE AIR Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
AP8113070 - CAPUCHON RENIFLARD Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
AP8113721 - AXE +GOUPILLE PINCE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/0/0/2/img/46002.jpg)
7 |
RESSORT PLAQUETTES DE FREIN ORIGINE PIAGGIO APRILIA 750-1200 DORSODURO, PEGASO, RST FUTURA, RSV-2, TUONO -AP8113722- Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
AP8113723 - GOUPILLE Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
B044207 - DISQUE FREIN AVANT Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/3/8/img/73438.jpg)
9 |
DISQUE DE FREIN AVANT (GOLD) ORIGINE PIAGGIO MOTO-GUZZI 850-1200 BREVA, NORGE, 1000 RSV-2, FALCO, 1200 SPORT -GU05613335 Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
Vis bride |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/7/img/71977.jpg)
10 |
VIS ETRIER DE FREIN ORIGINE PIAGGIO APRILIA 1000 RSV, TUONO/MOTO-GUZZI 1200 SPORT, BREVA, NORGE, 1400 CALIFORNIA -AP8152385 Plus d'informationsQuantité requise : 4 |
