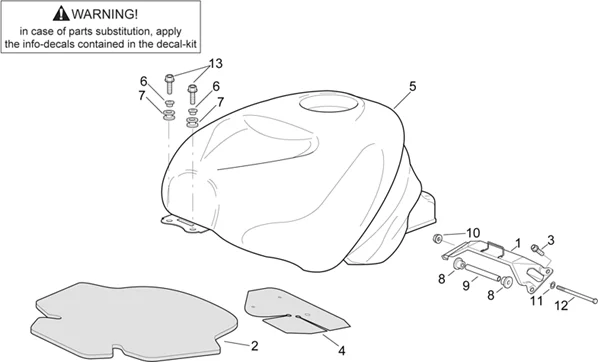

Chassis : 28.18 RÉSERVOIR ESSENCE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/744/RSV_1000_2000_28.18.PNG)
1 |
AP8134370 - SUPPORT RESERVOIR Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8117127 - PANN.INSONORIS.RES. Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8117174 - PANN.INSONORIS.RES. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
3 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152278 Plus d'informationsQuantité requise : 4 |
||||||
|
4 |
AP8117128 - PANN.THERMOFUGE RES. Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
RESERVOIR ORIGINE PIAGGIO APRILIA 1000 RSV-2 2000> NOIR -AP8148519- Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
Réservoir noir Apr.; |
||||||
|
5 |
AP8148904 - RESERV.ESS.TIGE H.R. Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
Réserv. ess.p.bl.él.; |
||||||
|
5 |
Réserv. ess.p.j. fl.; |
||||||
|
6 |
AP8121421 - "DOUILLE EN ""T""" Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
6 |
DOUILLE EN T (DIAMETRE INTERIEUR 6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8221023 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
7 |
CAOUTCHOUC/ENTRETOISE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120030 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/7/img/71757.jpg)
7 |
CAOUTCHOUC ORIGINE PIAGGIO COMMUN A LAGAMME -AP8144328 Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
AP8123934 - CAOUTCHOUC Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
AP8144062 - CAOUTCHOUC RESERV. Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
AP8134419 - DOUILLE ATTACHE RESERVOIR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
10 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152299 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
11 |
RONDELLE PLATE (6,4X12,5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150014 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
AP8150459 - VIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
13 |
VIS BRIDE TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152280 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
13 |
VIS BRIDE TH (6X30) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152281 Plus d'informationsQuantité requise : 2 |
