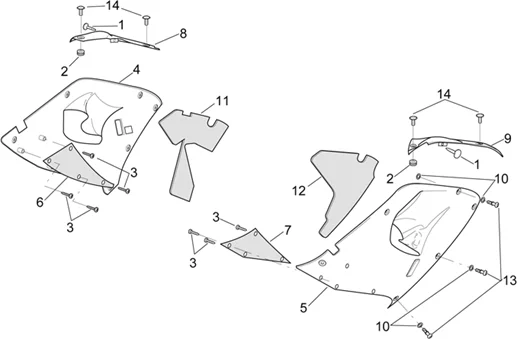

Chassis : 28.15 CARROSSERIE CENTRALE - CARÉNAGE SUP.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/744/RSV_1000_2000_28.15.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
1 |
BOUCHON CAOUTCHOUC ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120001 Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
2 |
ECROU (M5) AVEC INSERT CAOUTCHOUC ORIGINE PIAGGIO COMMUN A LA GAMME DERBI, APRILIA ET MOTO-GUZZI -AP8120531 Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
3 |
VIS CRUCIFORME (2.9X12) TARAUD POUR PLASTIQUE INOX ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150421 Plus d'informationsQuantité requise : 8 |
|||||||||
4 |
AP8148525 - CARENE LATER. D AP.NOIR Plus d'informationsQuantité requise : 1 |
|||||||||
|
4 |
AP8148553 - CARENE LATER. D AP.NOIR Plus d'informationsQuantité requise : 1 |
|||||||||
|
4 |
AP8148906 - CARENE LAT.D.P.H.R. Plus d'informationsQuantité requise : 1 |
|||||||||
|
4 |
Carène lat.d.p.b.él.; |
|||||||||
|
4 |
AP8148940 - CARENE LAT.D.P.J.F. Plus d'informationsQuantité requise : 1 |
|||||||||
|
5 |
AP8148526 - CARENE LATER. G AP.NOIR Plus d'informationsQuantité requise : 1 |
|||||||||
|
5 |
AP8148600 - CARENE LATER. G AP.NOIR Plus d'informationsQuantité requise : 1 |
|||||||||
|
5 |
AP8148907 - CARENE LAT.G.P.H.R. Plus d'informationsQuantité requise : 1 |
|||||||||
|
5 |
AP8148924 - CARENE LAT.G.P.B.EL. Plus d'informationsQuantité requise : 1 |
|||||||||
|
5 |
AP8148941 - CARENE LAT.G.P.J.F. Plus d'informationsQuantité requise : 1 |
|||||||||
|
6 |
AP8148483 - CARENAGE INT. D, NOIR Plus d'informationsQuantité requise : 1 |
|||||||||
|
7 |
AP8148484 - CARENAGE INT. G, NOIR Plus d'informationsQuantité requise : 1 |
|||||||||
|
8 |
AP8148529 - FERM.CARENE S.D.P.N. Plus d'informationsQuantité requise : 1 |
|||||||||
|
8 |
AP8148915 - FERM.CARENE S.D.P.R. Plus d'informationsQuantité requise : 1 |
|||||||||
|
8 |
AP8148932 - FERM.CARENE S.D.P.B. Plus d'informationsQuantité requise : 1 |
|||||||||
|
8 |
AP8148949 - FERM.CARENE S.D.P.J. Plus d'informationsQuantité requise : 1 |
|||||||||
|
9 |
AP8148530 - FERM.CARENE S.G.P.N. Plus d'informationsQuantité requise : 1 |
|||||||||
|
9 |
Ferm.carène s.g.p.r.; |
|||||||||
|
9 |
AP8148933 - FERM.CARENE S.G.P.B. Plus d'informationsQuantité requise : 1 |
|||||||||
|
9 |
AP8148950 - FERM.CARENE S.G.P.J. Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/0/img/71410.jpg)
10 |
RONDELLE PLATE (6X12) NYLON POUR CARENAGE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -AP8120622 Plus d'informationsQuantité requise : 24 |
|||||||||
|
11 |
AP8117130 - PANN.INSONORIS.SUP.D Plus d'informationsQuantité requise : 1 |
|||||||||
|
12 |
Pann.insonoris.sup.g; |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/5/8/img/46758.jpg)
13 |
PIVOT/FIXATION DE CARENAGE ORIGINE PIAGGIO APRILIA 1000 RSV-2 -AP8121253- Plus d'informationsQuantité requise : 12 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
14 |
VIS BTR DE CARENAGE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -2B014101 Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
14 |
VIS BTR DE CARENAGE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152302 Plus d'informationsQuantité requise : 4 |
|||||||||
