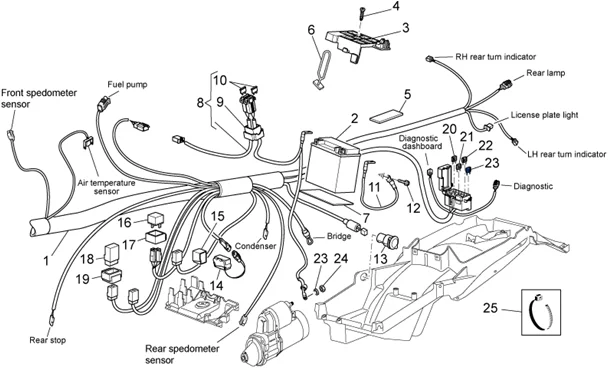

Chassis : 33.40 CIRCUIT ELECTRIQUE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/506/Norge_850_2007_33.40.PNG)
1 |
978214 - GRUPPO PRINCIPALE CAVI NORGE 850 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/4/9/img/70749.jpg)
2 |
BATTERIE 12V 20AH YT20-BS ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -883818- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/1/img/73441.jpg)
2 |
BATTERIE 12V 20 AH YTX20AH-BS ORIGINE PIAGGIO MOTO-GUZZI 1200 BREVA, GRISO -GU05704531- Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
883819 - COPERCHIO BATTERIA Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
4 |
VIS PARKER (5X20) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152329- Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
AP8117200 - EPONGE ADHESIVE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/6/img/71386.JPG)
6 |
SANGLE ELASTIQUE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120177- Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
AP8144553 - GOMMA INF. APPOGGIO BATTERIA Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
977520 - CAVO RICARICA ACCUMULATORE NORGE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/7/img/71277.JPG)
9 |
CAOUTCHOUC PORTE FUSIBLES ORIGINE PIAGGIO COMMUN A LA GAMME -AP8112811- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.JPG)
10 |
FUSIBLE PLAT ENFICHABLE STANDARD 30A ORIGINE PIAGGIO COMMUN A LA GAMME -CM225730- Plus d'informationsQuantité requise : 3 |
||||||
|
11 |
GU05747930 - CABLAGE MASSE-BATTERIE Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
978505 - CAVO MASSA ACCUMULATORE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
12 |
VIS BRIDE TH (6X12) ORIGINE PIAGGIO COMUUN A LA GAMME -AP8152277- Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
B063212 - PRISE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/1/img/67301.JPG)
14 |
SENSOR DE CHUTE/ CAPEUR ANTI-BASCULEMEMENT ORIGINE PIAGGIO COMMUN A LA GAMME -584509- Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
AP8144046 - CAOUTCHOUC DETECT. INCL. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/2/7/img/70827.jpg)
16 |
RELAIS INJECTION ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA ET MOTO-GUZZI -895481- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/9/img/72289.jpg)
17 |
CAOUTCHOUC SUPPORT RELAIS ORIGINE PIAGGIO COMMUN A LA GAMME -AP8220546- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
18 |
RELAIS 12V/30A ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA/MOTO-GUZZI -AP8224462- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.JPG)
19 |
SANGLE CAOUTCHOUC DE BLOC ORIGINE PIAGGIO COMMUN A LA GAMME -AP8220283- Plus d'informationsQuantité requise : 3 |
||||||
|
20 |
977773 - FUSIBILE LAM MINI 20A Plus d'informationsQuantité requise : 2 |
||||||
|
21 |
977772 - FUSIBLE 15A Plus d'informationsQuantité requise : 4 |
||||||
|
22 |
FUSIBLE PLAT ENFICHABLE MINI 3A ORIGINE PIAGGIO COMMUN A LA GAMME -977769- Plus d'informationsQuantité requise : 2 |
||||||
|
23 |
GU95129131 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
24 |
GU92609408 - ECROU M8X1,25 Plus d'informationsQuantité requise : 1 |
||||||
|
25 |
GU14609650 - COLLIER 3,6X20,6 Plus d'informationsQuantité requise : 22 |
||||||
|
25 |
GU30609600 - COLLIER 8,8X185 Plus d'informationsQuantité requise : 1 |
