Eclatés de véhicule - MOTO GUZZI NORGE 850 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

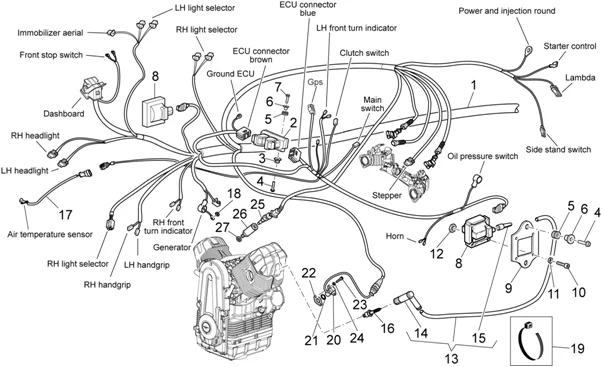

Chassis : 33.39 CIRCUIT ELECTRIQUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/506/Norge_850_2007_33.39.PNG)
1 |
978214 - GRUPPO PRINCIPALE CAVI NORGE 850 Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
977299 - CENTRALINA ELETTRONICA BREVA 850 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GU05729230 - DOUILLE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
4 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152279- Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
5 |
CAOUTCHOUC/ENTRETOISE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120030- Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
6 |
DOUILLE EN T (DIAMETRE INTERIEUR 6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8221023- Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
7 |
VIS BRIDE TH (6X35) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152282- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/3/3/img/130933.jpg)
8 |
BOBINE ALLUMAGE ORIGINE PIAGGIO MOTO-GUZZI 1100 CALIFORNIA 1994>2004, 1200 GRISO 2007>2017, 750 V7 2008>2012, 1200 NORGE 2010>, 1200 SPORT 2008>2013, 1100 V11 1999>2005 -GU30716500- Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
GU05716730 - SUPPORT BOBINE Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
GU98682125 - VIS M4X25 Plus d'informationsQuantité requise : 8 |
||||||
|
11 |
GU95008204 - RONDELLE 4,3X8X0,5 Plus d'informationsQuantité requise : 8 |
||||||
|
12 |
GU92630104 - ECROU M4X0,7 Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/8/8/7/img/128887.jpg)
13 |
FIL DE BOUGIE/CABLE HAUTE TENTION ORIGINE PIAGGIO MOTO-GUZZI 1200 NORGE, BREVA, SPORT -GU05718330- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/7/5/img/128275.jpg)
14 |
ANTIPARASITE (EQUIVALENT LB05E) ORIGINE DERBI 50 SENDA 2018>/GILERA 50 SMT, RCR 2018> -GU03717450- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
15 |
CAPUCHON/CAOUTCHOUC HT ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU14717600- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/3/5/img/130935.JPG)
16 |
BOUGIE BPR6ES ORIGINE PIAGGIO COMMUN A LA GAMME -GU30717061- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/2/img/71572.JPG)
17 |
CAPTEUR/DETECTEUR DE TEMPERATURE AIR ORIGINE PIAGGIO COMMUN A LA GAMME APRILIA ET MOTO GUZZI -AP8124936- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
18 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152299- Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
GU14609650 - COLLIER 3,6X20,6 Plus d'informationsQuantité requise : 22 |
||||||
|
19 |
GU30609600 - COLLIER 8,8X185 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/4/7/img/101947.jpg)
20 |
CAPTEUR DE PHASE/REGIME ORIGINE PIAGGIO MOTO-GUZZI 750-1100-1200 BREVA, NORGE, GRISO, 1200 STELVIO, SPORT, 1100 CALIFORNIA, V11, 750 V7, 940 BELLAGIO -GU01721600- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
21 |
JOINT TORIQUE CIRCUIT ALIMENTATION ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -847180- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/3/9/img/130439.jpg)
22 |
JOINT CAPTEUR PHASE/TOURS (0.5MM) ORIGINE MOTO GUZZI BELLAGIO, GRISO, NORGE -GU29722760- Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
GU01722705 - GUARNIZIONE 1,5MM Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
JOINT CAPTEUR PHASE/TOURS (1MM) ORIGINE MOTO GUZZI BELLAGIO, GRISO, NORGE -GU01722704- Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
JOINT CAPTEUR PHASE/TOURS (0.8MM) ORIGINE MOTO GUZZI BELLAGIO, GRISO, NORGE -GU01722703- Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
GU01722702 - GUARNIZIONE 0,6MM Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
GU01722701 - GUARNIZIONE 0,4MM Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
JOINT CAPTEUR PHASE/TOURS (0.3MM) ORIGINE MOTO GUZZI BELLAGIO, GRISO, NORGE -GU01722700- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/7/5/img/73575.jpg)
23 |
VIS BTR (5X12) ORIGINE PIAGGIO COMMUN ALA GAMME MOTO-GUZZI -GU98682212- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/1/img/132681.JPG)
24 |
RONDELLE PLATE (5.3X10X0.8) ORIGINE PIAGGIO COMMUN A LA GAMME -GU95008205- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/4/6/img/130446.jpg)
25 |
CAPTEUR/SONDE TEMPERATURE HUILE ORIGINE PIAGGIO 1100-1200 BREVA, GRISO, 1100 CALIFORNIA, V11, 750 V7, 940 BELLAGIO, 1000 DAYTONA, QUOTA, V10 - GU29729461 - Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/5/1/1/img/102511.JPG)
26 |
SUPPORT CAPTEUR TEMPERATURE HUILE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO GUZZI -GU03163330- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/2/img/132682.jpg)
27 |
RONDELLE PLATE (10,2X18X2) ORIGINE PIAGGIO COMMUN A LA GAMME -GU95008210- Plus d'informationsQuantité requise : 1 |
