Eclatés de véhicule - MOTO GUZZI NORGE 850 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

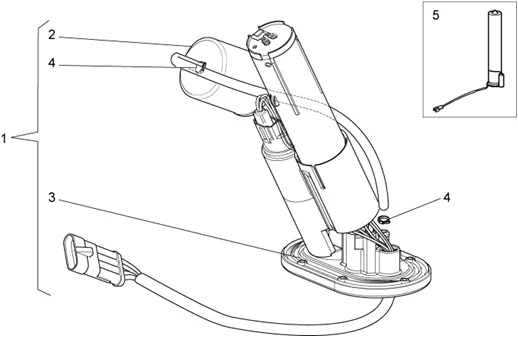

Chassis : 33.31 POMPE ESS. INTERNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/506/Norge_850_2007_33.31.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/1/9/0/img/98190.jpg)
1 |
POMPE A ESSENCE ORIGINE PIAGGIO MOTO-GUZZI 850-1100-1200 BREVA, 850-1200 NORGE, 1200 SPORT -2D000017- Plus d'informationsQuantité requise : 1 |
||||||
1 |
GU05107230 - POMPE ESSENCE CPL. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/6/img/73406.jpg)
2 |
FILTRE A ESSENCE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA ET MOTO-GUZZI -GU01106090- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/2/9/img/73429.jpg)
3 |
JOINT DE POMPE A ESSENCE ORIGINE PIAGGIO MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO -GU05107430- Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
GU01108490 - FASCETTA 11,3 Plus d'informationsQuantité requise : 4 |
||||||
|
5 |
JAUGE A ESSNCE ORIGINE APRILIA 650 PEGASO 2005>2009/MOTO GUZZI BREVA, NORGE -AP8127817- Plus d'informationsQuantité requise : 1 |
