Eclatés de véhicule - MOTO GUZZI NEVADA 750 1993-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

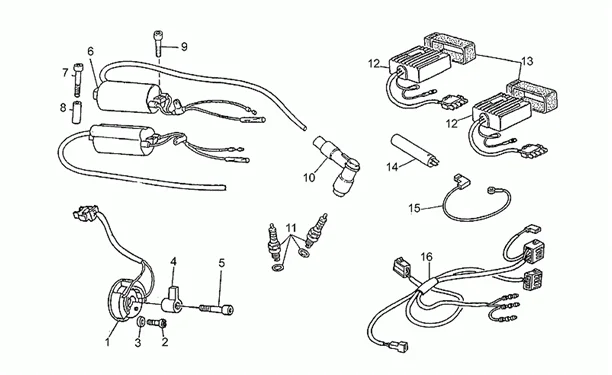

Chassis : 33.31 ALLUMAGE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/499/Nevada_750_1993-1997_33.31.PNG)
1 |
GU29722270 - CAPTEUR PHASE/TOURS Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GU95000205 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
GU98622318 - VIS M6X18 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/2/5/5/img/131255.jpg)
6 |
BOBINE HAUTE TENTION ALLUMAGE ORIGINE PIAGGIO MOTO-GUZZI 750 NEVADA, STRADA, TARGA, V35, V50, V65, V75, -GU31716560- Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
GU91180721 - ENTRETOISE Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
AP8212219 - PIPE BOUGIE BLINDEE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/7/img/69457.jpg)
11 |
BOUGIE B8ES ORIGINE PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2006>2010/ MOTO-GUZZI V65, NEVADA, STRADA -847085- Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
GU23721494 - CENTRALE ELECTRONIQUE Plus d'informationsQuantité requise : 2 |
||||||
|
13 |
GU27723835 - SUPPORT SIRENE Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
GU27710435 - CONDENSATEUR Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
GU18759550 - FILS DE MASSE Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
GU31722140 - CABLES Plus d'informationsQuantité requise : 1 |
