Eclatés de véhicule - MOTO GUZZI NEVADA 750 1993-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

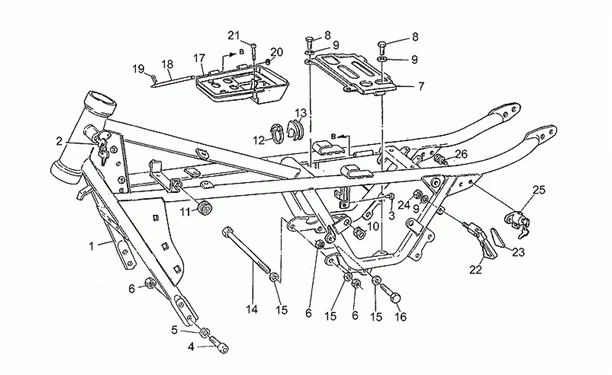

Chassis : 33.29 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/499/Nevada_750_1993-1997_33.29.PNG)
1 |
GU31400181 - CADRE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
GU19782520 - SERRURE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/8/0/img/129680.jpg)
3 |
TAMPON BEQUILLE LATERLE ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU19705900- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/4/2/img/133142.jpg)
4 |
VIS BTR (10X25) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98622525- Plus d'informationsQuantité requise : 4 |
||||||
|
5 |
GU95120105 - RONDELLE ELASTIQUE Plus d'informationsQuantité requise : 4 |
||||||
|
6 |
GU92602210 - ECROU Plus d'informationsQuantité requise : 6 |
||||||
|
7 |
GU27418210 - PLAQUE Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
031117 - BOULON S03111700 Plus d'informationsQuantité requise : 4 |
||||||
|
9 |
GU95004208 - RONDELLE Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
10 |
CAOUTCHOUC PASSE FIL (8X18) ORIGINE PIAGGIO COMMUN A LA GAMME -GU91551086-- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/8/6/img/131886.jpg)
11 |
TAMPON DE CHASSIS ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU39103400- Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
GU14609650 - COLLIER 3,6X20,6 Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
GU98110199 - PIVOT M10X205 Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
GU95004210 - RONDELLE 10,2X18X2 Plus d'informationsQuantité requise : 7 |
||||||
|
16 |
GU98052555 - VIS Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/2/img/132762.jpg)
19 |
GOUPILLE (2.2X26) ORIGINE PIAGGIO COMMUN A LA GAMME -GU95401215- Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
GU90280005 - JONC D ARRET Plus d'informationsQuantité requise : 1 |
||||||
|
24 |
GU92630108 - ECROU Plus d'informationsQuantité requise : 1 |
||||||
|
25 |
GU66466815 - SERRURE CASQUE Plus d'informationsQuantité requise : 1 |
||||||
|
26 |
GU66468115 - VIS A ARRACHEMENT Plus d'informationsQuantité requise : 2 |
