Eclatés de véhicule - APRILIA MX 125 Super Motard 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

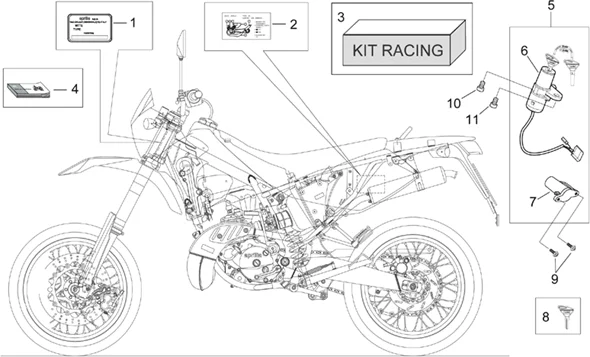

Chassis : 28.28 PLAQUETTE ET MANUELS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/692/MX_125_Super_Motard_2004-2006_28.28.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/4/8/img/45448.jpg)
5 |
CONTACTEUR A CLE/SERRURE ORIGINE PIAGGIO APRILIA 125 MX 2004>2006 -AP8104717- Plus d'informationsQuantité requise : 1 |
||||||
6 |
AP8127636 - BLOCCHETTO AVVIAMENTO-BLOCC. Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP8104808 - SERRATURA CASCO Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/5/img/97075.JPG)
8 |
EBAUCHE DE CLE ORIGINE PIAGGIO APRILIA 50-125 RS, SX, RX -AP8140710- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
10 |
VIS BTR (8X16) ORIGINE PIAGGIO COMMUN A LA GAMME -319165- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/6/img/71866.jpg)
11 |
VIS A ARRACHEMENT/AUTO-CASSANTE BTR (8X15) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150349- Plus d'informationsQuantité requise : 1 |
