Eclatés de véhicule - APRILIA MX 125 Super Motard 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

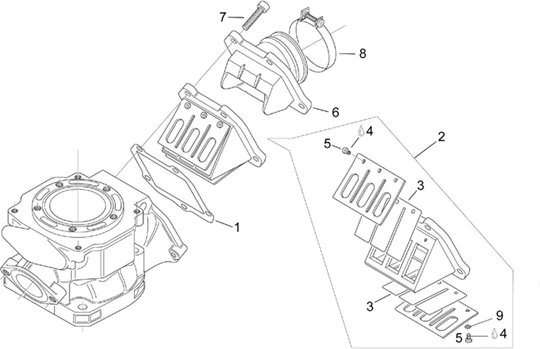

Moteur : 29.33 FLASQUE CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/692/MX_125_Super_Motard_2004-2006_29.33.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/8/3/7/img/43837.jpg)
1 |
JOINT DE CLAPET ORIGINE PIAGGIO APRILIA 125 RS, RX, SX, MX, TUONO, PEGASO, CLASSIC, AF1 -AP0250521- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/4/6/5/img/43465.jpg)
3 |
CLAPET ORIGINE PIAGGIO APRILIA 125 RS, CLASSIC, PEGASO, MX, RX, SX 2010< -AP0224389- Plus d'informationsQuantité requise : 2 |
||||||
4 |
AP0899788 - LOCTITE VERTE Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
RACCORD/PIPE ADMISSION ORIGINE PIAGGIO 125 APRILIA PEGASO DIAM 34 POUR CARBU DIAM 28 -AP0267993- Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP0840861 - VIS Plus d'informationsQuantité requise : 5 |
||||||
|
8 |
AP0251850 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
AP0945758 - RONDELLE FENDUE Plus d'informationsQuantité requise : 1 |
