Eclatés de véhicule - VESPA VESPA GT 200 Granturismo 200 L 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

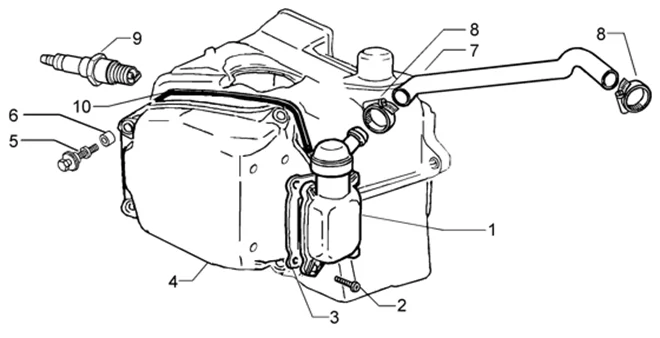

Moteur : T7 SOUPAPE RENIFLARD HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/723/Granturismo_200_L_1998-2005_T7.PNG)
1 |
CORPS DE RENIFLARD ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -1A010691R- Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
CORPS DE RENIFLARD ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -1A010691R- Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
828653 - BOULON Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/9/1/img/139391.jpg)
3 |
JOINT DE COUVRE CULASSE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 -1A003985- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/4/img/68854.JPG)
4 |
COUVRE CULASSE ORIGINE PIAGGIO 125-250-300 COMMUN A LA GAMME -829534- Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
830248 - VIS Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/2/img/68902.jpg)
6 |
JOINT DE VIS COUVERCLE DE CULASSE ORIGINE PIAGGIO 125-400-500 MP3, BEVERLY, 125-350 X10/APRILIA 750 DORSODURO, SHIVER, 850 SRV/GILERA 250-300-500 ATLANTIC, NEXUS/MOTO-GUZZI 1200 SPORT, GRISO -830249- Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/1/1/img/69311.jpg)
7 |
TUYAU RENIFLARD MOTEUR ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 -844094- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
8 |
COLLIER DURITE (19.8MM) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -CM001904- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/4/img/67814.jpg)
9 |
BOUGIE CR8EB ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -638853- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/2/9/img/66529.jpg)
9 |
BOUGIE CHAMPION RG6YC ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -438073- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/5/img/68855.jpg)
10 |
JOINT COUVERCLE DE CULASSE ORIGINE PIAGGIO 125-250-300 MP3, BEVERLY, VESPA GTS, 125 X-EVO, 125 X10/APRILIA 125-250-300 ATLANTIC, SR MAX/GILERA 125 NEXUS, RUNNER -829536- Plus d'informationsQuantité requise : 1 |
