Eclatés de véhicule - VESPA VESPA GT 200 Granturismo 200 L 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

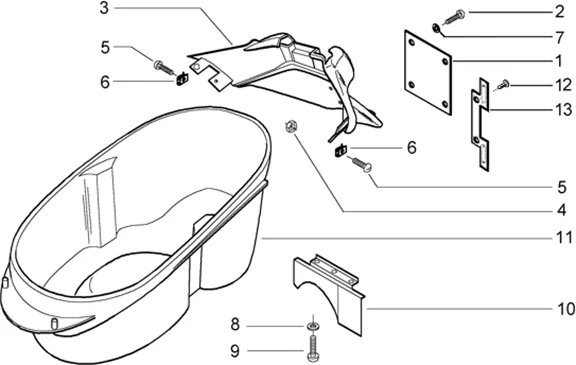

Châssis : T27 PARE-BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/723/Granturismo_200_L_1998-2005_T27.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/2/img/67322.jpg)
1 |
PORTE PLAQUE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -584884- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
2 |
VIS CRUCIFORME (4X12) ORIGINE PIAGGIO COMMUN A LA GAMME -015996- Plus d'informationsQuantité requise : 3 |
||||||
3 |
57739200VC - GARDE BOUE ARR GT 382 VERT VINTAGE * Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
57739200ND - BAVETTE ARR Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GARDE BOUE/BAVETTE ARRIERE ORIGINE PIAGGIO VESPA 125 GRANTURISMO GRIS 738 -57739200F2- Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GARDE BOUE/BAVETTE ARRIERE ORIGINE PIAGGIO VESPA 125 GRANTURISMO GRIS 731 -57739200EB- Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
57739200D9 - BAVETTE ARR * Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GARDE BOUE/BAVETTE ARRIERE ORIGINE PIAGGIO VESPA 125 GRANTURISMO BLEU 202 -57739200D8- Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
5773920018 - BAVETTE ARR Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GARDE BOUE/BAVETTE ARRIERE ORIGINE PIAGGIO VESPA 125 GRANTURISMO NOIR 94 -5773920090- Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GARDE BOUE ARRIERE ORIGINE PIAGGIO VESPA 125 GT PLATINE 686 -57739200A7- Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
57739200BG - BAVETTE ARR Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
57739200BM - BAVETTE ARR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
4 |
ECROU (M4) ORIGINE PIAGGIO COMMUN A LA GAMME -020104- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
5 |
VIS CRUCIFORME (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -259830- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
7 |
RONDELLE (4,2X7,6X0,9) ORIGINE PIAGGIO COMMUN A LA GAMME -016404- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
8 |
RONDELLE PLATE (4X12) ORIGINE PIAGGIO COMMUN A LA GAMME -013763- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/3/6/img/110236.JPG)
9 |
RIVET ORIGINE PIAGGIO COMMUN A LA GAMME -567642- Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
620236 - PARE BOUE Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
621155 - PORTE-CASQUE * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/1/img/67321.jpg)
12 |
RALLONGE POUR PORTEPLAQUE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -584877- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/4/img/66074.jpg)
13 |
VIS AUTOTARAUDEUSE (4X13) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -268596- Plus d'informationsQuantité requise : 4 |
