Eclatés de véhicule - VESPA VESPA GT 200 Granturismo 200 L 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

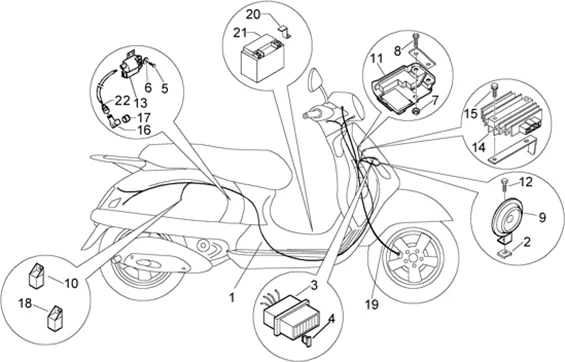

Connexions électriques : T42 DISPOSITIFS ELECTRIQUES-CLAXON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/723/Granturismo_200_L_1998-2005_T42.PNG)
1 |
584657 - FAISC. DE CABLES Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
2 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/1/img/67181.jpg)
3 |
PORTE-FUSIBLES ORIGINE PIAGGIO COMMUN A LA GAMME -580653- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
4 |
FUSIBLE PLAT ENFICHABLE STANDARD 7,5A ORIGINE PIAGGIO COMMUN A LA GAMME -252945- Plus d'informationsQuantité requise : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/4/img/66254.jpg)
4 |
FUSIBLE PLAT ENFICHABLE STANDARD 10A ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -292507- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/2/img/66262.JPG)
4 |
FUSIBLE PLAT ENFICHABLE STANDARD 5A ORIGINE PIAGGIO COMMUN A LA GAMME -293256- Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
5 |
VIS CRUCIFORME (5X21) ORIGINE PIAGGIO COMMUN A LA GAMME -015856- Plus d'informationsDescription : COMMUN A TOUTE LA GAMME Quantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/2/img/65342.JPG)
6 |
RONDELLE A DENTS (5,3X10) ORIGINE PIAGGIO COMMUN A LA GAMME -012528- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/0/img/70940.JPG)
7 |
ECROU BRIDE (D6) DE CULASSE ORIGINE PIAGGIO COMMUN A LA GAMME -969224- Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
8 |
VIS TBC (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -272836- Plus d'informationsQuantité requise : 1 |
|||||||||
|
9 |
58092R - AVERTISSEUR Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
10 |
RELAIS DEMARREUR MAXISCOOTER ORIGINE PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A) -58115R- Plus d'informationsQuantité requise : 1 |
|||||||||
|
11 |
58054R - DISPOSITIF ELECTR.IMM. Plus d'informationsQuantité requise : 1 |
|||||||||
|
12 |
434541 - VIS Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
12 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/7/4/img/68574.jpg)
13 |
BOBINE ALLUMAGE ORIGINE PIAGGIO 125 BEVERLY, LIBERTY, SUPER HEXAGON, VESPA GTS, VESPA LX/APRILIA 125 ATLANTIC, SPORT-CITY, SCARABEO 2010< -82597R- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/7/img/67187.jpg)
14 |
REGULATEUR MAXISCOOTER ORIGINE PIAGGIO 125 BEVERLY, FLY, LIBERTY, MP3, X7, X8, X9, X-EVO, VESPA GTS, PRIMAVERA, VESPA SPRINT, VESPA LX/APRILIA 125 ATLANTIC, MOJITO, RS4/GILERA 125 NEXUS -58090R5- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
15 |
VIS TH (6X22) ORIGINE PIAGGIO COMMUN A LA GAMME -031091- Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/9/img/70969.jpg)
16 |
ANTIPARASITE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCOOTER -969348- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/3/4/img/68734.jpg)
17 |
CAOUTCHOUC ANTI PARASITE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -8282106- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/8/img/67948.jpg)
18 |
RELAIS DE DEMARREUR ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -641933- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/2/2/3/img/87223.jpg)
19 |
CABLE/COMMANDE/TRANSMISSION DE COMPTEUR ORIGINE PIAGGIO 125 VESPA GTS 2007>2012 -651072- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/0/7/img/149107.jpg)
20 |
FIXATION/PATTE DE BATTERIE ORIGINE PIAGGIO 125-150-250-300 GTS -6218305- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/0/img/67320.jpg)
21 |
BATTERIE 12V 10AH ORIGINE PIAGGIO COMMUN A LA GAMME -584867- Plus d'informationsQuantité requise : 1 |
|||||||||
|
21 |
497629 - BATTERIE 12V 11A 100CCA (PB10L-B) Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/3/0/img/111130.JPG)
22 |
CACHE/CAPUCHON EMBOUT ANTIPARASITE ORIGINE PIAGGIO TRIPORTEUR APE POKER 1993>2004 -255473- Plus d'informationsQuantité requise : 1 |
|||||||||
