Eclatés de véhicule - MOTO GUZZI CALIFORNIA 1100 California Vintage 1100 2006-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

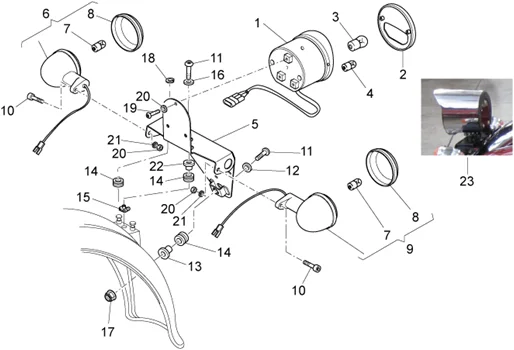

Chassis : 33.31 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/484/California_Vintage_1100_2006-2010_33.31.PNG)
1 |
977170 - FANALE POST VINTAGE * Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8127380 - LENS+NUMBER PLATE LIGHT KIT Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GU93450224 - LAMPE (OU AMPOULE) 12V/5-21W Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
4 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE ORIGINE PIAGGIO COMMUN A LA GAMME -2920225 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/9/6/1/img/99961.jpg)
5 |
PLAQUE/PLATINE DE FEU ARRIERE ORIGINE PIAGGIO MOTO-GUZZI 1100 CALIFORNIA 2006>2012 -977016- Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
977186 - INDIC.DIREZ.POST.DX Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
GU93450127 - LAMPE (OU AMPOULE) 12V-10W Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
AP8124111 - VITRE CLIGNOTANT Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
977185 - INDIC.DIREZ.POST.SX Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
GU98612316 - VIS M6X16 Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
GU98370625 - VIS M6X25 Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
GU95100141 - RONDELLE 6,5X20X2 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/7/img/72297.jpg)
13 |
DOUILLE EN T (8,5X10,7X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8221128 Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
GU91551010 - CAOUTCHOUC Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
15 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
GU95005306 - RONDELLE 6,4X13X1,5 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/2/8/img/132528.jpg)
17 |
ECROU BRIDE (6) ORIGINE PIAGGIO COMMUN A LA GAMME -GU92650036 Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
977617 - ANELLO EL 8X INOX Plus d'informationsQuantité requise : 2 |
||||||
|
19 |
GU98370516 - VIS M5X16 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/4/7/img/132747.jpg)
20 |
RONDELLE ELASTIQUE (5.3X10X0.5) ORIGINE PIAGGIO COMMUN A LA GAMME -GU95129100 Plus d'informationsQuantité requise : 4 |
||||||
|
21 |
GU92787006 - ECROU Plus d'informationsQuantité requise : 2 |
||||||
|
22 |
GU30576100 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
23 |
883992 - (*)ASSIEME VISIERA FARO POST Plus d'informationsQuantité requise : 1 |
