Eclatés de véhicule - MOTO GUZZI CALIFORNIA 1100 California Vintage 1100 2006-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

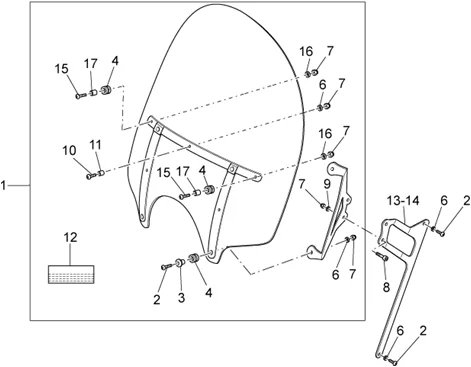

Chassis : 33.10 PARE-BRISE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/484/California_Vintage_1100_2006-2010_33.10.PNG)
1 |
Kit Pare-brise |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/5/9/img/133059.jpg)
2 |
VIS BTR TETE BOMBEE (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98370621 Plus d'informationsQuantité requise : 8 |
||||||
|
3 |
GU03578432 - BAGUE Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/8/1/img/73481.jpg)
4 |
CAOUTCHOUC 10X25 ORIGINE PIAGGIO COMMUN A LA GAMME -GU32577910 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
6 |
RONDELLE ELASTIQUE (6.4X12) ORIGINE PIAGGIO COMMUN A LA GAMME -GU03013800 Plus d'informationsQuantité requise : 13 |
||||||
|
7 |
GU92787006 - ECROU Plus d'informationsQuantité requise : 13 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
8 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152278 Plus d'informationsQuantité requise : 4 |
||||||
|
9 |
GU91120620 - ENTRETOISE Plus d'informationsQuantité requise : 8 |
||||||
|
10 |
GU98370612 - VIS Plus d'informationsQuantité requise : 3 |
||||||
|
11 |
GU91120605 - BAGUE Plus d'informationsQuantité requise : 3 |
||||||
|
12 |
Décalco |
||||||
|
13 |
977454 - STAFFA DX ALLA FORCELLA VINTAGE Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
977455 - STAFFA SX ALLA FORCELLA VINTAGE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/6/img/73566.jpg)
15 |
VIS BTR SPECIALE TETE BOMBEE (6X16) ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU98370616 Plus d'informationsQuantité requise : 6 |
||||||
|
16 |
GU95005331 - RONDELLE 6,5X24X2 Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
DOUILLE |
