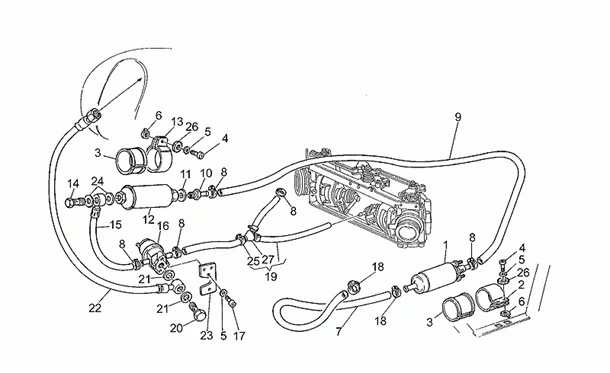

Chassis : 33.34 ALIMENTATION I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/477/California_EV_1100_1997-2000_33.34.PNG)
1 |
GU29107261 - POMPE ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
GU29107360 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GU29105860 - PROTECTION CAOUTCH. Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
GU98622318 - VIS M6X18 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
5 |
RONDELLE RESSORT (6.7X11.8X0.4) ORIGINE PIAGGIO COMMUN A LA GAMME -GU61013800- Plus d'informationsQuantité requise : 5 |
||||||
|
6 |
GU92660601 - ECROU EN CAGE Plus d'informationsQuantité requise : 3 |
||||||
|
7 |
GU03106500 - TUYAU Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
GU93305017 - COLLIER Plus d'informationsQuantité requise : 6 |
||||||
|
9 |
GU30106170 - TUYAN DE LA POMPE AU FILTRE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
GU30106800 - RACCORD Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/1/8/img/129418.JPG)
11 |
RONDELLE ETANCHEITE (14.25X22X1) ORIGINE PIAGGIO COMMUN A LA GAMME -GU18161150- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/3/5/1/img/130351.jpg)
12 |
FILTRE A ESSENCE MOTO ORIGINE PIAGGIO MOTO-GUZZI 1100 CALIFORNIA 1994>2002, 1000 QUOTA 1992>1997 (M14X12) -GU29106061- Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
GU29113860 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
GU29109161 - VIS CREUSE Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
GU30108270 - TUYAU ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
GU98682312 - VIS TCEI M6X12 Plus d'informationsQuantité requise : 2 |
||||||
|
18 |
GU12157900 - COLLIER Plus d'informationsQuantité requise : 2 |
||||||
|
20 |
GU29107960 - VIS CREUSE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/2/5/img/129125.jpg)
21 |
RONDELLE PLATE (8,25X15X1) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU12154200- Plus d'informationsQuantité requise : 2 |
||||||
|
22 |
GU30108770 - TUYAU ESSENCE * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/8/5/img/125185.jpg)
24 |
JOINT/GARNITURE 12,25 ORIGINE PIAGGIO COMMUN A LA GAMME MOTO GUZZI -GU12006400- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/1/3/3/img/130133.jpg)
25 |
COLLIER CLIC (12.5X8) ORIGINE PIAGGIO COMMUN A LA GAMME -GU28157950- Plus d'informationsQuantité requise : 3 |
||||||
|
26 |
GU95100141 - RONDELLE 6,5X20X2 Plus d'informationsQuantité requise : 3 |
||||||
|
27 |
GU29106860 - RACCORD 3 VOIES Plus d'informationsQuantité requise : 1 |
