Eclatés de véhicule - MOTO GUZZI CALIFORNIA 1100 California EV 1100 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

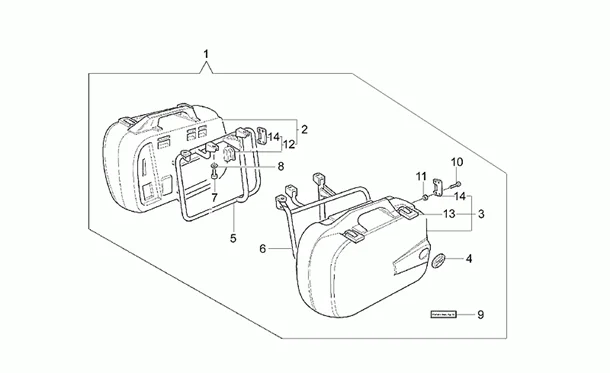

Chassis : 33.02 SIDE CASES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/477/California_EV_1100_1997-2000_33.02.PNG)
2 |
GU30482560 - RH SUITCASE 40 L Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
GU31482565 - RH SUITCASE 30 L Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/8/0/5/img/102805.jpg)
4 |
AUTOCOLLANT/STICKER/DECOR "MOTO-GUZZI" POUR VALISES ORIGINE PIAGGIO MOTO-GUZZI 1100 CALIFORNIA, 750 NEVADA -GU03482000- Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
GU03485070 - SUPPORTO VALIGIA DX * Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
GU03486570 - SUPPORTO VALIGIA SX Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/0/0/img/133200.jpg)
7 |
VIS BTR (8X40) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98690440- Plus d'informationsQuantité requise : 4 |
||||||
|
7 |
VIS BTR (8X45) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98690445- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.JPG)
8 |
GU95008208 - RONDELLE 8,4X15X1,8 Plus d'informationsQuantité requise : 6 |
||||||
|
9 |
GU29482400 - PLAQUE KG.10 Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
GU98350318 - VIS M6X18 Plus d'informationsQuantité requise : 4 |
||||||
|
11 |
GU92630707 - ECROU M6X1 Plus d'informationsQuantité requise : 4 |
||||||
|
12 |
GU03484000 - SERRATURA Plus d'informationsQuantité requise : 2 |
||||||
|
13 |
GU03484001 - SERRATURA Plus d'informationsQuantité requise : 4 |
||||||
|
14 |
GU00979726 - PIASTRINA FERMO Plus d'informationsQuantité requise : 2 |
