Eclatés de véhicule - MOTO GUZZI CALIFORNIA 1100 California EV 1100 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

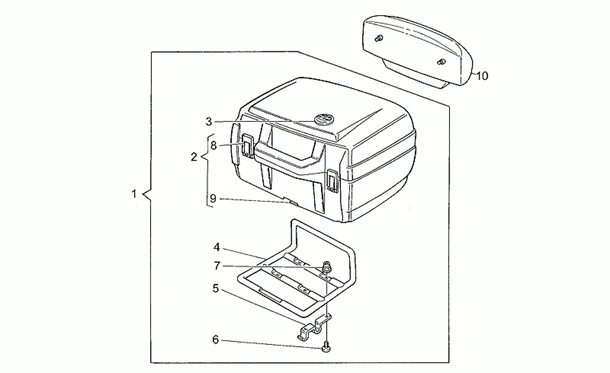

Chassis : 33.01 COFFRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/477/California_EV_1100_1997-2000_33.01.PNG)
2 |
GU31487665 - COFFRE 40 L Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/8/0/5/img/102805.jpg)
3 |
AUTOCOLLANT/STICKER/DECOR "MOTO-GUZZI" POUR VALISES ORIGINE PIAGGIO MOTO-GUZZI 1100 CALIFORNIA, 750 NEVADA -GU03482000- Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GU03482001 - DEC."MOTOGUZZI" 40 L Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
GU31487765 - PLAQUE SUPPORT Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
GU03487802 - STAFFA Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/1/img/68461.jpg)
6 |
VIS BTR TETE BOMBEE (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -672380- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/1/img/65941.jpg)
7 |
ECROU BRIDE (6) ORIGINE PIAGGIO COMMUN A LA GAMME -219277- Plus d'informationsQuantité requise : 4 |
||||||
|
8 |
GU03484001 - SERRATURA Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
GU03484000 - SERRATURA Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
GU31488065 - COUSSIN DOSSIER 40 L Plus d'informationsQuantité requise : 1 |
