Eclatés de véhicule - MOTO GUZZI CALIFORNIA 1100 California Aquila Nera 1100 2009-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

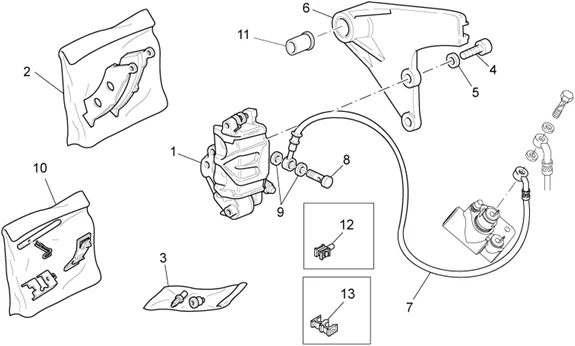

Chassis : 33.21 PINCE FREIN AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/475/California_Aquila_Nera_1100_2009-2011_33.21.PNG)
1 |
977171 - PINZA FRENO POST NERA Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/1/3/img/71313.jpg)
2 |
PLAQUETTES DE FREIN ARRIERE ORIGINE PIAGGIO MOTI-GUZZI CALIFORNIA 2012>, AUDACE 2015>, ELDORADO 2015>, BELLAGIO (PAIRE) -AP8113627 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8133502 - PURGE AIR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/6/img/71836.jpg)
4 |
VIS BTR (10X30) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150195 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
5 |
RONDELLE ENGRENAGE POMPE A HUILE (10,5X16X1) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -AP8152220 Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
GU03635851 - VIS Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
977367 - TUBAZ. DA VALVOLA A PINZA FRENO POST Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/5/2/img/71652.jpg)
8 |
VIS/RACCORD BANJO TUYAU DE FREIN ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -AP8133594 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
9 |
RONDELLE DURITE FREIN (10X1.5X1) ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU25656100 Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
AP8113999 - GOUJON+RESSORT PINCE Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
GU03634850 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
AP8202238 - ANCRAGE GUIDE-CABLE Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
AP8201808 - GUIDE-CABLE Plus d'informationsQuantité requise : 1 |
