Eclatés de véhicule - APRILIA ATLANTIC 500 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

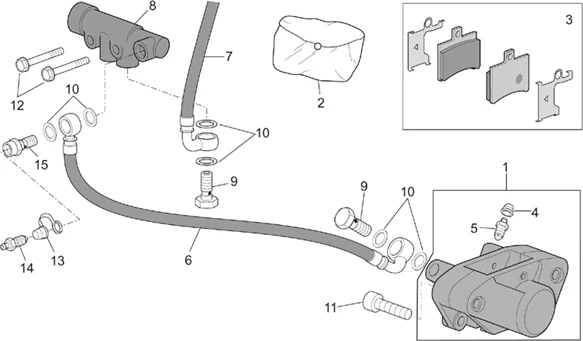

Chassis : 28.30 PINCE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/760/Atlantic_500_2001-2004_28.30.PNG)
1 |
AP8133704 - PINZA FRENO POST.D.32 Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8213467 - KIT REVISION PINCE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/6/7/img/71667.jpg)
3 |
PLAQUETTES ARRIERE ORIGINE PIAGGIO 500 APRILIA SCARABEO 2003>2008, ATLANTIC 2001>2004, 125-250 SPORT-CITY -AP8133726- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/4/img/71284.jpg)
4 |
CAPUCHON RENIFLARD ETRIER DE FREIN OROGINE PIAGGIO COMMUN A LA GAMME 2008< -AP8113005 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/5/img/71285.jpg)
5 |
VIS DE PURGE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER/MAXISCOOTER APRILIA -AP8113006- Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
AP8133536 - TUYAU FREIN ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP8133543 - TUBE FREIN Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/7/8/7/img/48787.jpg)
8 |
REPARTITEUR DE FREIN MAXISCOOTER ORIGINE APRILIA 125-250-400-500 ATLANTIC, SCARABEO (GRIMECA) -AP8133738 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
9 |
VIS TUYAU HUILE (10MM) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8113003 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
10 |
RONDELLE (10X14X1,6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8113004 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/3/img/71823.jpg)
11 |
VIS BTR (8X30) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150107 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
12 |
VIS BRIDE TH (6X35) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152282 Plus d'informationsQuantité requise : 2 |
||||||
|
13 |
AP8113230 - CAPUCHON RENIFLARD Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
AP8113761 - PURGE AIR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/0/0/7/img/46007.jpg)
15 |
VIS PERCEE BANJO EMBRAYAGE ORIGINE APRILIA 1000 RSV 1998>2008 -AP8113762 Plus d'informationsQuantité requise : 1 |
