Eclatés de véhicule - APRILIA ATLANTIC 500 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

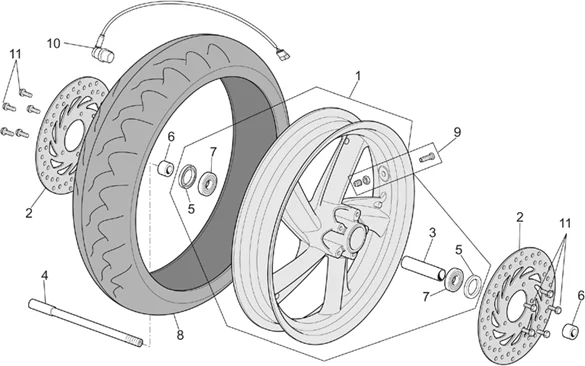

Chassis : 28.27 ROUE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/760/Atlantic_500_2001-2004_28.27.PNG)
1 |
AP8108959 - ROUE AV CPL Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/1/9/img/71319.jpg)
2 |
AP8113697 - DISQUE FREIN AVANT Plus d'informationsQuantité requise : 2 |
||||||
|
3 |
AP8125896 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8125850 - AXE DE ROUE AV Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP8120621 - JOINT SPI Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
AP8125899 - ENTRETOISE ROUE AVANT Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
AP8125812 - ROULEMENT Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
Pneu avant |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/6/img/72136.jpg)
9 |
VALVE TUBELESS ORIGINE PIAGGIO COMMUN A LA GAMME -AP8201546 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/7/img/71567.jpg)
10 |
CAPTEUR DE COMPTEUR ORIGINE PIAGGIO MOTO-GUZZI 750 V7 RACER 2009>, NEVADA, BREVA/APRILIA 500 SCARABEO 2003>2006, 500 ATLANTIC 2001>2004, 250 RS, 1000 RSV-2, RSV-4, TUONO, FALCO -AP8124528 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
11 |
VIS BRIDE TH (8X30) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152288 Plus d'informationsQuantité requise : 10 |
