Eclatés de véhicule - APRILIA ATLANTIC 500 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

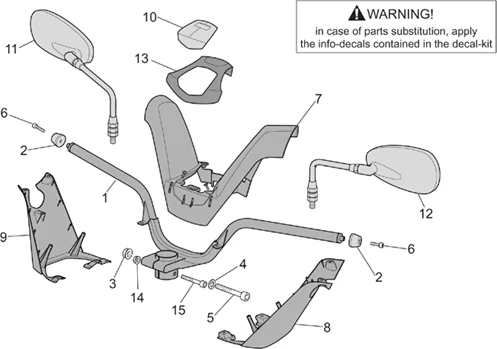

Chassis : 28.18 GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/760/Atlantic_500_2001-2004_28.18.PNG)
1 |
AP8118589 - GUIDON Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8104384 - MASSE ANTIVIBRATILE GUIDON Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
3 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152301 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
4 |
RONDELLE PLATE (10,5X21X2) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150020 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/2/img/71822.jpg)
5 |
VIS BTR (10X70) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150088 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
6 |
VIS BTR (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150165 Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
AP8149444 - CACHE-GUIDON SUPERIEUR Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
Cache-guidon inférieur gche; |
||||||
|
9 |
AP8149443 - CACHE-GUIDON INFERIEUR D. Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
AP8158432 - COUVERCLE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
AP8158539 - COUVERCLE Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
AP8104453 - MIROIR RETROVISEUR DTE Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
AP8104454 - MIROIR RETROVISEUR GCHE Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
AP8158430 - COUVERCLE GUIDON PEINT GRIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/3/img/71883.jpg)
14 |
ECROU AUTOBLOQUANT/NYLSTOP (M8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150431 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/9/img/71849.jpg)
15 |
VIS BTR (8X50) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150277 Plus d'informationsQuantité requise : 1 |
