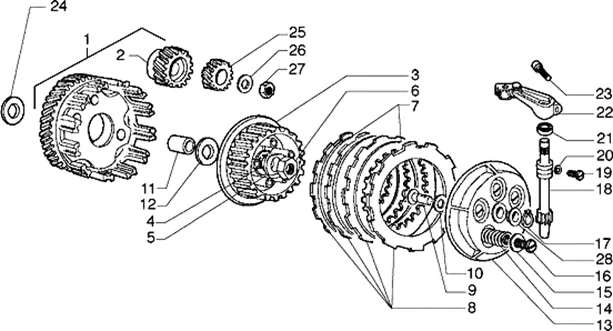

Vehicle Exploded View - GILERA ZULU 50 1998-2005 GILERA

Moteur : T7 GROUPE EMBRAYAGE
Groupe embrayage
Search
PRIMARY DRIVING GEAR Z-22 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, GSM, H@K 1998>2005 -00H02601381-

2
P2R reference P2R reference 64718
Maker reference Maker reference 00H02601381

PRIMARY DRIVING GEAR Z-22 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, GSM, H@K 1998>2005 -00H02601381-

More information

Quantity required : 1
CLUTCH PRESSURE PLATE"PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 RS 2006>, SX, RX -847045-

3
P2R reference P2R reference 69428
Maker reference Maker reference 847045

CLUTCH PRESSURE PLATE"PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 RS 2006>, SX, RX -847045-

More information

Quantity required : 1
WASHER FOR CLUTCH PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847224-

4
P2R reference P2R reference 69495
Maker reference Maker reference 847224

WASHER FOR CLUTCH PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847224-

More information

Quantity required : 1
CLUTCH LOCKING WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/DERBI 50 SENDA, GPR -876418-

5
P2R reference P2R reference 70608
Maker reference Maker reference 876418

CLUTCH LOCKING WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/DERBI 50 SENDA, GPR -876418-

More information

Quantity required : 2
NUT - FOR CLUTCH NUT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -847221-

6
P2R reference P2R reference 69492
Maker reference Maker reference 847221

NUT - FOR CLUTCH NUT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -847221-

More information

Quantity required : 1
DRIVEN CLUTCH DISC "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, TUONO, SX, RX -847043-

7
P2R reference P2R reference 69426
Maker reference Maker reference 847043

DRIVEN CLUTCH DISC "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, TUONO, SX, RX -847043-

More information

Quantity required : 1
DRIVEN CLUTCH DISC "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847044-

8
P2R reference P2R reference 69427
Maker reference Maker reference 847044

DRIVEN CLUTCH DISC "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847044-

More information

Quantity required : 4
00H02600271 - CREMAILLETE D,EMBRAYAGE

9
P2R reference P2R reference 64715
Maker reference Maker reference 00H02600271

00H02600271 - CREMAILLETE D,EMBRAYAGE

More information

Quantity required : 1
CLUTCH PLATE BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847222-

10
P2R reference P2R reference 69493
Maker reference Maker reference 847222

CLUTCH PLATE BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847222-

More information

Quantity required : 1
CLUTCH DRUM "PIAGGIO GENUINE PART" GILERA 50 SMT 2006>, RCR 2006>/APRILIA 50 SX 2006>, RX 2006>, RS 2006>/DERBI 50 SENDA 2006> (needs pinion for EURO 2 model) -497643-

11
P2R reference P2R reference 66965
Maker reference Maker reference 497643

CLUTCH DRUM "PIAGGIO GENUINE PART" GILERA 50 SMT 2006>, RCR 2006>/APRILIA 50 SX 2006>, RX 2006>, RS 2006>/DERBI 50 SENDA 2006> (NEEDS PINION FOR EURO 2 MODEL) -497643-

More information

Quantity required : 1
1A009075 - ENTRETOISE

12
P2R reference P2R reference 187216
Maker reference Maker reference 1A009075

1A009075 - ENTRETOISE

More information

Quantity required : 1
CLUTCH WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847042-

12
P2R reference P2R reference 69425
Maker reference Maker reference 847042
Replaced by référence Replaced by référence 187216

CLUTCH WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847042-

More information

Quantity required : 1
CLUTCH COLLAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50-125 RS4 2011>, 50 SX, RX 2006>, 125 SX, RX 2018> -847046-

13
P2R reference P2R reference 69429
Maker reference Maker reference 847046

CLUTCH COLLAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50-125 RS4 2011>, 50 SX, RX 2006>, 125 SX, RX 2018> -847046-

More information

Quantity required : 1
CLUTCH PLATE SPRING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847047-

14
P2R reference P2R reference 69430
Maker reference Maker reference 847047

CLUTCH PLATE SPRING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847047-

More information

Quantity required : 1
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181-

15
P2R reference P2R reference 69480
Maker reference Maker reference 847181

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181-

More information

Quantity required : 1
00012053500 - VIS 5M80X35

16
P2R reference P2R reference 63695
Maker reference Maker reference 000120535005

00012053500 - VIS 5M80X35

More information

Quantity required : 1
CIRCLIP FOR CLUTCH CONTROL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00000047110-

17
P2R reference P2R reference 63602
Maker reference Maker reference 000000471105

CIRCLIP FOR CLUTCH CONTROL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00000047110-

More information

Quantity required : 1
00H02610311 - AXE

18
P2R reference P2R reference 64719
Maker reference Maker reference 00H02610311

00H02610311 - AXE

More information

Quantity required : 1
00H02600342 - VIS

19
P2R reference P2R reference 64716
Maker reference Maker reference 00H02600342

00H02600342 - VIS

More information

Quantity required : 1
00H03800441 - RONDELLE

20
P2R reference P2R reference 64838
Maker reference Maker reference 00H03800441

00H03800441 - RONDELLE

More information

Quantity required : 1
GASKET RING- CLUTCH CONTRAL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847075-

21
P2R reference P2R reference 69449
Maker reference Maker reference 847075

GASKET RING- CLUTCH CONTRAL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847075-

More information

Quantity required : 1
CLUTCH RELEASE SHAFT "PIAGGIO GENUINE PART" 50 APRILIA RS4 2011> -CM151201-

22
P2R reference P2R reference 73270
Maker reference Maker reference CM151201

CLUTCH RELEASE SHAFT "PIAGGIO GENUINE PART" 50 APRILIA RS4 2011> -CM151201-

More information

Quantity required : 1
CLUTCH WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX, RS -847218-

24
P2R reference P2R reference 69491
Maker reference Maker reference 847218

CLUTCH WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX, RS -847218-

More information

Quantity required : 1
00H03800181 - PIGNON

25
P2R reference P2R reference 64835
Maker reference Maker reference 00H03800181

00H03800181 - PIGNON

More information

Quantity required : 1
BALANCE SHAFT WASHER "PIAGGIO GENUINE PART" APRILIA 50 RS 2006> -847276-

26
P2R reference P2R reference 69515
Maker reference Maker reference 847276

BALANCE SHAFT WASHER "PIAGGIO GENUINE PART" APRILIA 50 RS 2006> -847276-

More information

Quantity required : 1
NUT -FOR CRANKSHAFT PINION "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2003 -00H02600401-

27
P2R reference P2R reference 64717
Maker reference Maker reference 00H02600401

NUT -FOR CRANKSHAFT PINION "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2003 -00H02600401-

More information

Quantity required : 1
WASHER FOR CLUTCH PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847224-

28
P2R reference P2R reference 69495
Maker reference Maker reference 847224

WASHER FOR CLUTCH PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847224-

More information

Quantity required : 1
