Vehicle Exploded View - GILERA ZULU 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

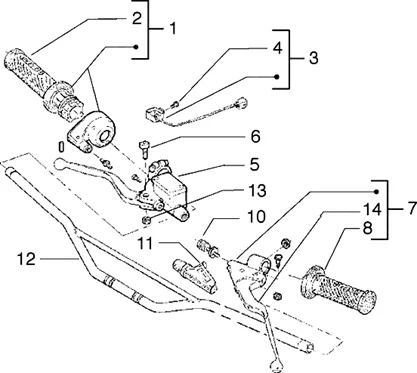

Guidon : T26 PIECES COMPOSANT LE GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/650/Zulu_1998-2005_T26.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/3/2/6/img/92326.JPG)
1 |
THROTTLE HANDLE "PIAGGIO GENUINE PART" GILERA 50 GSM, ZULU, SURFER H@K 1998>2004 -812528- More informationQuantity required : 1 |
||||||
1 |
813751 - PORTE LEVIER D More informationQuantity required : 1 |
||||||
|
2 |
812529 - POIGNEE DROITE More informationQuantity required : 1 |
||||||
|
3 |
294514 - POUSSOIR DEMARREUR More informationQuantity required : 1 |
||||||
|
4 |
327145 - MANCHON EX 126939 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
5 |
STOP LIGHT SWITCH "PIAGGIO GENUINE PART" UTILISABLE SUR L'ENSEMBLE DE LA GAMME PIAGGIO/GILERA/APRILIA/VESPA -580953- More informationQuantity required : 1 |
||||||
|
5 |
813751 - PORTE LEVIER D More informationQuantity required : 1 |
||||||
|
7 |
813876 - MANCHON G More informationQuantity required : 1 |
||||||
|
8 |
812527 - POIGNEE G More informationQuantity required : 1 |
||||||
|
9 |
329574 - PORTE LEVIER CPLT G More informationQuantity required : 1 |
||||||
|
12 |
8139140029 - GUIDON More informationQuantity required : 1 |
||||||
|
13 |
810511 - ECROU More informationQuantity required : 1 |
||||||
|
14 |
329404 - LEVIER EMBRAYAGE More informationQuantity required : 1 |
