Vehicle Exploded View - VESPA VESPA GTS 125 Vespa Super GTS 125 4T ie ABS- NOABS E3 2009-2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

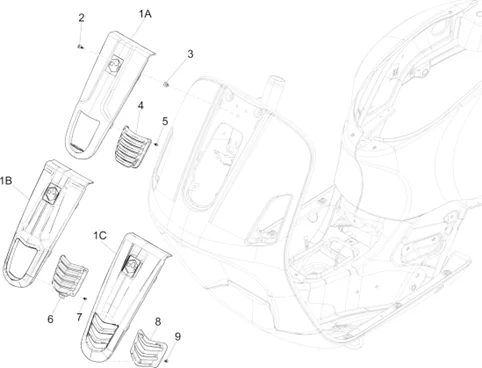

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1336/Vespa_Super_GTS_125_4T_ie_ABS-_NOABS_E3_2009-2016_02.26.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/7/2/3/img/88723.jpg)
1A |
STEERING COVER- FRONT "PIAGGIO GENUINE PART" 125-300 VESPA GTS GREY 742/B -65534850EZ More informationQuantity required : 1 |
||||||
1A |
6553486000 - CACHE DIRECTION AV BRUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/7/2/1/img/88721.jpg)
1A |
STEERING COVER- FRONT "PIAGGIO GENUINE PART" 125-300 VESPA GTS -65534800NL- More informationQuantity required : 1 |
||||||
|
1A |
65534800GP - CACHE DIRECTION AV More informationQuantity required : 1 |
||||||
|
1A |
65534800R7 - CACHE DIRECTION AV More informationQuantity required : 1 |
||||||
|
1A |
65534800BR - CACHE DIRECTION AV More informationQuantity required : 1 |
||||||
|
1A |
65534860AS - COUVERTURE DU GUIDON More informationQuantity required : 1 |
||||||
|
1A |
65534800GP - CACHE DIRECTION AV More informationQuantity required : 1 |
||||||
|
1A |
65534800R7 - CACHE DIRECTION AV More informationQuantity required : 1 |
||||||
|
1A |
6553480090 - CACHE DIRECTION AV More informationQuantity required : 1 |
||||||
|
1A |
65534800BR - CACHE DIRECTION AV More informationQuantity required : 1 |
||||||
|
1A |
6553480090 - CACHE DIRECTION AV More informationQuantity required : 1 |
||||||
|
1B |
1B000886000DQ - COUVERCLE More informationQuantity required : 1 |
||||||
|
1B |
1B000886000NL - COUVERCLE More informationQuantity required : 1 |
||||||
|
1B |
1B00088600090 - COUVERCLE More informationQuantity required : 1 |
||||||
|
1B |
1B000886000R7 - COUVERCLE More informationQuantity required : 1 |
||||||
|
1B |
1B000886 - COUVERCLE More informationQuantity required : 1 |
||||||
|
1B |
1B000886600BR - HANDLEBARS COVER More informationQuantity required : 1 |
||||||
|
1C |
1B000885000BR - CACHE DIRECTION AV More informationQuantity required : 1 |
||||||
|
1C |
1B000885000R7 - CACHE DIRECTION AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/7/0/7/img/75707.JPG)
1C |
1B000885 - CACHE DIRECTION More informationQuantity required : 1 |
||||||
|
1C |
1B000885000EU - CACHE-DIRECTION More informationQuantity required : 1 |
||||||
|
1C |
1B000885000DQ - CACHE-DIRECTION More informationQuantity required : 1 |
||||||
|
1C |
1B000885000T6 - CACHE-DIRECTION More informationQuantity required : 1 |
||||||
|
1C |
1B00088560090 - STEERING COVER More informationQuantity required : 1 |
||||||
|
1C |
1B000885600EZ - HANDLEBARS COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/8/img/96288.jpg)
2 |
CM179101 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
3 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/7/2/6/img/88726.jpg)
4 |
HORN GRILLE/STEERING COVER "PIAGGIO GENUINE PART" 125-300 VESPA GTS -655349- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
5 |
SCREW - -008432 More informationQuantity required : 2 |
||||||
|
6 |
1B000887 - GRILLE More informationQuantity required : 1 |
||||||
|
7 |
SCREW - -008432 More informationQuantity required : 4 |
||||||
|
8 |
1B000954 - GRILLE CACHE DIRECTION AV More informationQuantity required : 1 |
||||||
|
9 |
SCREW - -008432 More informationQuantity required : 1 |
