Vehicle Exploded View - VESPA VESPA GTS 125 Vespa Super GTS 125 4T ie ABS- NOABS E3 2009-2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

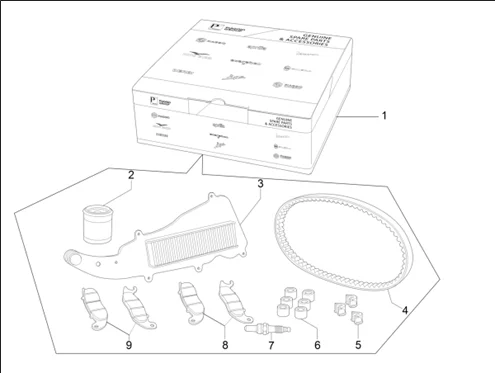

Maintenance : 07.01 COMPLETE WEAR AND MAINTENANCE KIT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1336/Vespa_Super_GTS_125_4T_ie_ABS-_NOABS_E3_2009-2016_07.01.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/5/7/4/img/204574.jpg)
1 |
KIT ENTRETIEN MAXISCOOTER ORIGINE PIAGGIO 125 VESPA GTS ABS 2009>2016 -1R000565 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/0/6/4/9/img/210649.jpg)
2 |
FILTRE A HUILE MAXISCOOTER ORIGINE PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS -1A022356 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/0/7/4/img/157074.jpg)
3 |
AIR FILTER"PIAGGIO GENUINE PART" PREMIUM - 125 X-EVO 2007>, MP3 2006>, VESPA GT 2004>, VESPA GTS 2007>, X8 2004>, 125 X9-EVO 2007>, 250 MP3 2006>, 300 MP3 2010> -8319970P More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/7/6/5/img/162765.jpg)
4 |
1A011455 - COURROIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/1/img/66461.jpg)
5 |
VARIATOR SLIDING GUIDE "PIAGGIO GENUINE PART" 125 MP3 2007>, X8 2004>, X9 2003>, X-EVO 2007>, FLY 2005>, VESPA LX 2005>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 2005> -4348555 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/7/9/img/73079.jpg)
6 |
VARIATOR ROLLER "PIAGGIO GENUINE PART" 125 BEVERLY, X9, MP3, X10, X7, X-EVO, VESPA GTS/APRILIA 125 ATLANTIC, SPORT-CITY, SR-MAX, SCARABEO/GILERA 125 NEXUS, RUNNER (7,4 G) (SET OF 6) -CM1038045 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/4/5/img/67845.jpg)
7 |
SPARK PLUG "NGK" CR8EKB "PIAGGIO GENUINE PART" 125-300 MP3, BEVERLY, X7, GTS/APRILIA 125 ATLANTIC/GILERA 125 NEXUS/MOTO-GUZZI GRISO, NORGE, STELVIO -639687 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/3/1/8/img/90318.jpg)
8 |
BRAKE PADS - "PIAGGIO GENUINE PART" 125-350-500 X10 FRONTANT GAUCHE, 125-300 VESPA GTS ABS FRONT LEFT (PAIR) -668021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/0/8/img/68008.jpg)
9 |
REAR BRAKE PADS - "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS 2007> (PAIR) -647161 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
