Vehicle Exploded View - VESPA VESPA SPRINT 50 Vespa Sprint S 50 E4 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

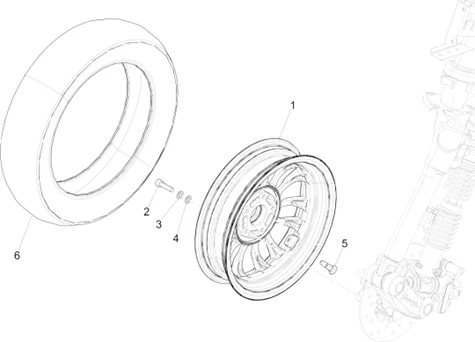

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_04.11.png)
1 |
1C007056R0090 - ROUE AVANT More informationQuantity required : 1 |
||||||
|
2 |
1C007745 - CYLINDER AND HEXAGONAL SOCKET HEAD SCRE More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/9/2/8/6/img/209286.jpg)
3 |
1C007759 - ELASTIC CORRUGATED WASHER More informationQuantity required : 5 |
||||||
|
4 |
1C007766 - PLAIN WASHER More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
5 |
597679 - TUBELESS VALVE More informationQuantity required : 1 |
||||||
|
6 |
1C002662 - PNEU 110/70-12" More informationQuantity required : 1 |
||||||
|
6 |
1C003736 - PNEU 110/70-12" More informationQuantity required : 1 |
||||||
|
6 |
1C006466 - PNEU AV More informationQuantity required : 1 |
