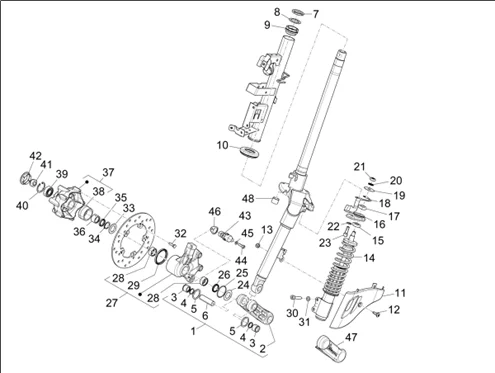

Vehicle Exploded View - VESPA VESPA SPRINT 50 Vespa Sprint S 50 E4 2024 (EMEA)

	P2R reference	209184
	Maker reference	1C0073135

1C0073135 - MODELLSTEERING PIPE WITH WISHBONE

	P2R reference	201063
	Maker reference	1C0016555

1C0016555 - FRONT SUSPENSION WISHBONE WITH I.P.

	P2R reference	75262
	Maker reference	198513

ROLLER BEARING FOR FORK LINK "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA + MP3 -198513

	P2R reference	65707
	Maker reference	119219

GASKET RING FOR FRONT FORK ARTICULATION "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -119219

	P2R reference	63834
	Maker reference	0067315

GASKET FOR SUSPENSION ROCKER "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA ET MP3 -006731

	P2R reference	65779
	Maker reference	177451

ARTICULATION SHAFT AXLE FOR FRONT SWINGING ARM "PIAGGIO GENUINE PART" COMMON TO ALL THE SCOOTER VESPA/125-250-300-400-500 MP3 -177451

	P2R reference	65339
	Maker reference	01110945

NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -0111094

	P2R reference	63783
	Maker reference	00375145

STEERING WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC + MAXISCOOTER 125 CC -0037514

	P2R reference	68161
	Maker reference	65069345

UPPER HEADSET "PIAGGIO GENUINE PART" PIAGGIO 50 ZIP, FLY, LIBERTY, VESPA LX, 125 VESPA PX, 125-250-300-400-500 MP3, YOURBAN/GILERA 50 STALKER, RUNNER, 125 NEXUS, RUNNER/APRILIA 50 SR -65069345

	P2R reference	87018
	Maker reference	65007545

STEERING COLUMN BEARING (UPPER) "PIAGGIO GENUINE PART" 125 FLY, VESPA GTS, VESPA LXV, PRIMAVERA , VESPA S -65007545

	P2R reference	140118
	Maker reference	1C001165

FRONT SHOCK ABSORBER COVER "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA, SPRINT -1C001165

	P2R reference	73367
	Maker reference	CM179302

CM179302 - VIS

	P2R reference	70940
	Maker reference	969224

969224 - ECROU

	P2R reference	155345
	Maker reference	1C004068R

1C004068R - AMORTISSEUR

	P2R reference	65770
	Maker reference	174874

RUBBER PAD FOR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER +MAXISCOOTER -174874

	P2R reference	153165
	Maker reference	1C003390

1C003390 - PATTE

	P2R reference	74966
	Maker reference	174085

FRONT SUSPENSION ARM BUFFER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250-300 VESPA GTS, 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125 VESPA PX -174085

	P2R reference	160664
	Maker reference	1C004308

1C004308 - SUPPORT

	P2R reference	74967
	Maker reference	174088

174088 - RONDELLE

	P2R reference	65346
	Maker reference	0125355

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535

	P2R reference	73964
	Maker reference	0212105

021210 - ECROU EX 319438 + S02121000

	P2R reference	65418
	Maker reference	0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408

	P2R reference	151576
	Maker reference	1C003712

1C003712 - VIS

	P2R reference	75024
	Maker reference	177445

177445 - ENTRETOISE

	P2R reference	65776
	Maker reference	177408

177408 - BAGUE

	P2R reference	142375
	Maker reference	1C001969

1C001969 - BOURRAGE

	P2R reference	149279
	Maker reference	1C0019705

1C0019705 - SUPPORT

	P2R reference	198561
	Maker reference	1C006892

1C006892 - DRAWN CUP ROLLER BEARING

	P2R reference	75025
	Maker reference	177494

BUSHING FOR FRONT WHEEL HUB "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177494

	P2R reference	180320
	Maker reference	1C006164

1C006164 - SCREW (CYLINDER HEAD)

	P2R reference	68491
	Maker reference	709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047

	P2R reference	75976
	Maker reference	1C000291

1C000291 - VIS M6X22

	P2R reference	75025
	Maker reference	177494

BUSHING FOR FRONT WHEEL HUB "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177494

	P2R reference	63816
	Maker reference	0064225

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006422

	P2R reference	75023
	Maker reference	177443

FRONT WHEEL GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -177443

	P2R reference	65778
	Maker reference	177442

ROLLER BEARING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177442

	P2R reference	207017
	Maker reference	1C0003836

1C0003836 - MOYEU DE ROUE AVANT

	P2R reference	209281
	Maker reference	650906

650906 - DOUILLE MOYEU

	P2R reference	68102
	Maker reference	649910

FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -649910

	P2R reference	63823
	Maker reference	0066355

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006635

	P2R reference	198573
	Maker reference	668001

668001 - ECROU

	P2R reference	209282
	Maker reference	1C007451

1C007451 - WHEEL AXLE PLUG

	P2R reference	152892
	Maker reference	SP1D000074

PHONIC WHEEL / SPEEDOMETER SENSOR "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -1D000074

	P2R reference	68497
	Maker reference	709674

709674 - VIS

	P2R reference	63841
	Maker reference	0069765

006976 - RONDELLE S00697600

	P2R reference	90442
	Maker reference	668780

668780 - RONDELLE

	P2R reference	209283
	Maker reference	1B011333000N22

1B011333000N22 - FRONT SUSPENSION ARM COVER

	P2R reference	67462
	Maker reference	601026

601026 - BOUCHON
