Vehicle Exploded View - VESPA VESPA SPRINT 125 Vespa Sprint S 125 E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

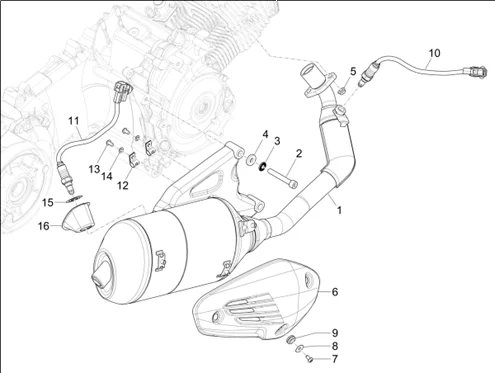

Moteur : 01.42 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1217/Vespa_Sprint_S_125_E5_2024_EMEA_01.42.png)
1 |
1A024510 - COMPLETE MUFFLER WITH MANIFOLD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/0/img/69320.jpg)
2 |
SCREW - FOR EXHAUST "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, VESPA LX, VESPA-S, 125 FLY, X8 STREET -844470 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
3 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/8/img/68488.jpg)
4 |
709012 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
5 |
NUT - TO HEAD/EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -436947 More informationQuantity required : 2 |
||||||
|
6 |
1A025442 - THERMAL PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/7/3/img/68173.jpg)
7 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -651014 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/6/img/68676.jpg)
8 |
EXHAUST FLAT WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -827526 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/4/img/69204.jpg)
9 |
841782 - PASSE CABLE More informationQuantity required : 3 |
||||||
|
10 |
1A024117 - SONDE LAMDA More informationQuantity required : 1 |
||||||
|
11 |
1A024117 - SONDE LAMDA More informationQuantity required : 1 |
||||||
|
12 |
643451 - COLLIER. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
13 |
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
14 |
006975 - RONDELLE S00697500 More informationQuantity required : 2 |
||||||
|
15 |
1A025777 - PROTECTION More informationQuantity required : 1 |
||||||
|
16 |
1A026116 - PROTECTION More informationQuantity required : 1 |
