Vehicle Exploded View - VESPA VESPA SPRINT 125 Vespa Sprint S 125 E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

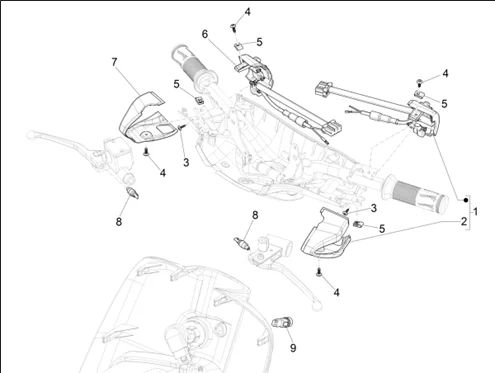

Circuit électrique : 06.01 INVERSEURS - COMMUTATEURS - BOUTONS - INTERRUPTEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1217/Vespa_Sprint_S_125_E5_2024_EMEA_06.01.png)
1 |
1D004611000N22 - DISPOSITIF COMMANDE éLECTRIQUE G. More informationQuantity required : 1 |
||||||
|
2 |
1B010309000N22 - LEFT SUPPORT BUTTONS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
3 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
4 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
5 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 4 |
||||||
|
6 |
1D004610000N22 - RIGHT HANDLEBAR SWITCH More informationQuantity required : 1 |
||||||
|
7 |
1B010308000N22 - RIGHT SUPPORT BUTTONS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
8 |
STOP LAMP SWITCH "PIAGGIO GENUINE PART" 125-500 MP3, X10, X-EVO, BEVERLY, GAMME VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO -642032 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/2/4/2/img/140242.jpg)
9 |
1D001533 - BOUTON OUVERTURE ELECTR. More informationQuantity required : 1 |
