Vehicle Exploded View - VESPA VESPA S 125 4T 3V ie 2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

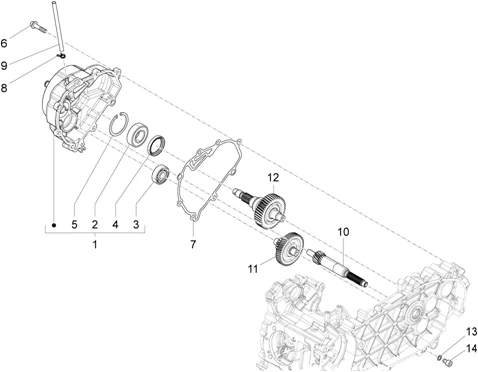

Moteur : 01.25 ENSEMBLE RÉDUCTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/224/Vespa_S_125_4T_3V_ie_2012_01.25.PNG)
1 |
B0161225 - COUVERCLE DU REDUCTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/7/4/img/127274.jpg)
2 |
1A005346R - ROULEMENT More informationQuantity required : 1 |
||||||
|
2 |
1A005346R - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/8/4/7/img/92847.jpg)
3 |
83026R - ROULEMENT 15X42X13 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/0/img/72690.jpg)
4 |
B015623 - JOINT SPIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/6/img/63826.jpg)
5 |
006652 - CIRCLIP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/8/img/72718.jpg)
6 |
SCREW - M8X35 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -B016772- More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/6/9/7/img/94697.JPG)
7 |
B016456 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
8 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE PIAGGIO RANGE -CM002901- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/4/img/72894.jpg)
8 |
CM002908 - COLLIER More informationQuantity required : 1 |
||||||
|
9 |
B017276 - TUYAU OIL More informationQuantity required : 1 |
||||||
|
10 |
B017168 - ARBRE DE POULIE More informationQuantity required : 1 |
||||||
|
11 |
8319145 - ARBRE DE RENVOI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/4/4/img/139444.jpg)
12 |
REAR IMPELLER SHAFT "PIAGGIO GENUINE PART" 125 LIBERTY, VESPA-S, VESPA LX/APRILIA 125 MOJITO -B0161805- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
13 |
DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
14 |
269755 - VIS More informationQuantity required : 1 |
