Vehicle Exploded View - VESPA VESPA S 125 4T 3V ie 2012 VESPA

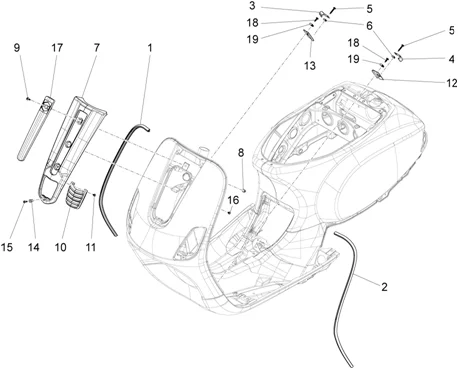

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
Tablier avant
Search
FRONT FAIRING EDGE-RIGHT "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -622188-

1
P2R reference P2R reference 84570
Maker reference Maker reference 622188

FRONT FAIRING EDGE-RIGHT "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -622188-

More information

Quantity required : 1
FRONT FAIRING EDGE-LEFT "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -622187-

2
P2R reference P2R reference 84569
Maker reference Maker reference 622187

FRONT FAIRING EDGE-LEFT "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -622187-

More information

Quantity required : 1
CLIP FOR ROD OF RIGHT FRONT FAIRING "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -299965-

3
P2R reference P2R reference 78091
Maker reference Maker reference 299965

CLIP FOR ROD OF RIGHT FRONT FAIRING "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -299965-

More information

Quantity required : 1
CLIP FOR ROD OF LEFT FRONT FAIRING "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -299965-

4
P2R reference P2R reference 78090
Maker reference Maker reference 299964

CLIP FOR ROD OF LEFT FRONT FAIRING "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -299965-

More information

Quantity required : 1
268596 - VIS

5
P2R reference P2R reference 66074
Maker reference Maker reference 268596

268596 - VIS

More information

Quantity required : 2
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM017403-

6
P2R reference P2R reference 72921
Maker reference Maker reference CM017403

NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM017403-

More information

Quantity required : 2
67532300NL - CACHE-DIRECTION

7
P2R reference P2R reference 91932
Maker reference Maker reference 67532300NL

67532300NL - CACHE-DIRECTION

More information

Quantity required : 1
67532300DI - CACHE-DIRECTION

7
P2R reference P2R reference 91930
Maker reference Maker reference 67532300DI

67532300DI - CACHE-DIRECTION

More information

Quantity required : 1
STEERING COLUMN COVER "PIAGGIO GENUINE PART" 50-125 VESPA-S WHITE 544 -67532300BR-

7
P2R reference P2R reference 91928
Maker reference Maker reference 67532300BR

STEERING COLUMN COVER "PIAGGIO GENUINE PART" 50-125 VESPA-S WHITE 544 -67532300BR-

More information

Quantity required : 1
PAINTED STEERING COVER "PIAGGIO GENUINE PART" 50-125 VESPA-S BLACK 94 -6753230090-

7
P2R reference P2R reference 91926
Maker reference Maker reference 6753230090

PAINTED STEERING COVER "PIAGGIO GENUINE PART" 50-125 VESPA-S BLACK 94 -6753230090-

More information

Quantity required : 1
675323 - CACHE-DIRECTION

7
P2R reference P2R reference 91925
Maker reference Maker reference 675323

675323 - CACHE-DIRECTION

More information

Quantity required : 1
STEERING COLUMN COVER "PIAGGIO GENUINE PART" 50-125 VESPA-S RED 894 -67532300R7-

7
P2R reference P2R reference 91933
Maker reference Maker reference 67532300R7

STEERING COLUMN COVER "PIAGGIO GENUINE PART" 50-125 VESPA-S RED 894 -67532300R7-

More information

Quantity required : 1
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716-

8
P2R reference P2R reference 109019
Maker reference Maker reference 157716

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716-

More information

Quantity required : 1
CM179101 - VIS

9
P2R reference P2R reference 96288
Maker reference Maker reference CM179101

CM179101 - VIS

More information

Quantity required : 1
675325 - GRILLE.

10
P2R reference P2R reference 91941
Maker reference Maker reference 675325

675325 - GRILLE.

More information

Quantity required : 1
SCREW - -008432-

11
P2R reference P2R reference 63854
Maker reference Maker reference 0084325

SCREW - -008432-

More information

Quantity required : 2
LEFT LOWER BRACKET FOR LEG SHIELD "PIAGGIO GENUINE PART" 50-125 VESPA-S -654899-

12
P2R reference P2R reference 88495
Maker reference Maker reference 654899

LEFT LOWER BRACKET FOR LEG SHIELD "PIAGGIO GENUINE PART" 50-125 VESPA-S -654899-

More information

Quantity required : 1
RIGHT LOWER BRACKET FOR LEG SHIELD "PIAGGIO GENUINE PART" 50-125 VESPA-S -654913-

13
P2R reference P2R reference 88500
Maker reference Maker reference 654913

RIGHT LOWER BRACKET FOR LEG SHIELD "PIAGGIO GENUINE PART" 50-125 VESPA-S -654913-

More information

Quantity required : 1
AP8144564 - CAOUTCHOUC AVEC INSERT

14
P2R reference P2R reference 71770
Maker reference Maker reference AP8144564

AP8144564 - CAOUTCHOUC AVEC INSERT

More information

Quantity required : 1
018544 - VIS

15
P2R reference P2R reference 65439
Maker reference Maker reference 0185445

018544 - VIS

More information

Quantity required : 1
SCREW - FOR FAIRINGS FASTENING (3,5x13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498-

16
P2R reference P2R reference 66301
Maker reference Maker reference 297498

SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498-

More information

Quantity required : 2
675324 - PROFIL CHROME VESPA S '12'

17
P2R reference P2R reference 91940
Maker reference Maker reference 675324

675324 - PROFIL CHROME VESPA S '12'

More information

Quantity required : 1
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601-

18
P2R reference P2R reference 73357
Maker reference Maker reference CM178601

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601-

More information

Quantity required : 2
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017409-

19
P2R reference P2R reference 72925
Maker reference Maker reference CM017409

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017409-

More information

Quantity required : 2
