Vehicle Exploded View - VESPA VESPA PX 200 E 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

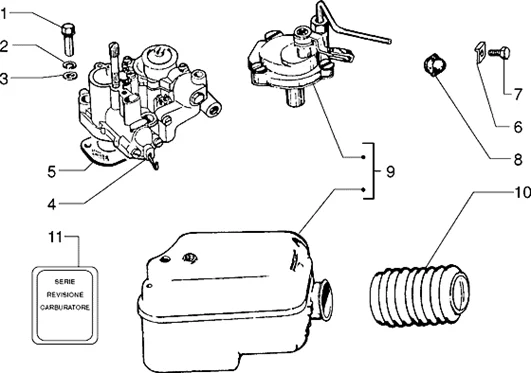

Moteur : T18 CARBURATEUR-FILTRE A AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/725/Vespa_PX_200_E_1998-2005_T18.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/8/0/6/img/76806.jpg)
1 |
239265 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/8/2/8/img/73828.jpg)
2 |
016409 - RONDELLE S01640900 More informationQuantity required : 2 |
||||||
3 |
013762 - RONDELLE S01376200 More informationQuantity required : 2 |
||||||
|
4 |
|
||||||
|
4 |
285328 - CARBURATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/5/2/9/img/94529.jpg)
5 |
CARB BASE GASKET "PIAGGIO GENUINE PART" VESPA 125 PX -B013740 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/4/img/65744.jpg)
6 |
146087 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/3/img/65743.jpg)
7 |
146086 - VIS More informationQuantity required : 1 |
||||||
|
8 |
CAPUCHON |
||||||
|
9 |
FILTRE A AIR CPLT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/6/1/6/img/76616.jpg)
10 |
AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" 125 VESPA PX -227205 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/8/7/3/img/74873.jpg)
11 |
COMPLETE CARB GASKET SET "PIAGGIO GENUINE PART" 125 VESPA PX -154792 More informationQuantity required : 1 |
