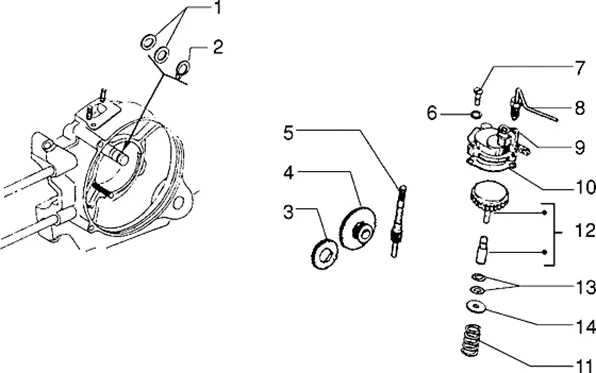

Vehicle Exploded View - VESPA VESPA PX 200 E 1998-2005 VESPA

Moteur : T17 MELANGEUR AUTOMATIQUE
Melangeur automatique
Search
133223 - RONDELLE

1
P2R reference P2R reference 74683
Maker reference Maker reference 133223

133223 - RONDELLE

More information

Quantity required : 2

CLIP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTER -006408

2
P2R reference P2R reference 63808
Maker reference Maker reference 0064085

CLIP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTER -006408

More information

Quantity required : 1

287038 - PIGNON

3
P2R reference P2R reference 77532
Maker reference Maker reference 287038

287038 - PIGNON

More information

Quantity required : 1

OIL PUMP PINION "PIAGGIO GENUINE PART" 125 VESPA PX -236402-

4
P2R reference P2R reference 76754
Maker reference Maker reference 236402

OIL PUMP PINION "PIAGGIO GENUINE PART" 125 VESPA PX -236402

More information

Quantity required : 1

OIL PUMP PINION "PIAGGIO GENUINE PART" 125 VESPA PX -287014-

5
P2R reference P2R reference 77529
Maker reference Maker reference 287014

OIL PUMP PINION "PIAGGIO GENUINE PART" 125 VESPA PX -287014-

More information

Quantity required : 1

006964 - RONDELLE ELAST. S00696400

6
P2R reference P2R reference 63836
Maker reference Maker reference 0069645

006964 - RONDELLE ELAST. S00696400

More information

Quantity required : 3

008339 - VIS S00833900

7
P2R reference P2R reference 73690
Maker reference Maker reference 0083395

008339 - VIS S00833900

More information

Quantity required : 3

238873 - TUBE HUILE

8
P2R reference P2R reference 76794
Maker reference Maker reference 238873

238873 - TUBE HUILE

More information

Quantity required : 1

COUVERCLE POMPE A HUILE VSX

9
P2R reference P2R reference
Maker reference Maker reference 2388756

COUVERCLE POMPE A HUILE VSX

OIL PUMP GASKET "PIAGGIO GENUINE PART" 125 VESPA PX -B013741

10
P2R reference P2R reference 94530
Maker reference Maker reference B013741

OIL PUMP GASKET "PIAGGIO GENUINE PART" 125 VESPA PX -B013741

More information

Quantity required : 1

165260 - RESSORT PISTON

11
P2R reference P2R reference 146225
Maker reference Maker reference 165260

165260 - RESSORT PISTON

More information

Quantity required : 1

2216145 - POMPE

12
P2R reference P2R reference 140288
Maker reference Maker reference 2216145

2216145 - POMPE

More information

Quantity required : 1

006708 - JOINT S00670800

13
P2R reference P2R reference 63830
Maker reference Maker reference 0067085

006708 - JOINT S00670800

More information

Quantity required : 2

400282 - RONDELLE

14
P2R reference P2R reference 66346
Maker reference Maker reference 400282

400282 - RONDELLE

More information

Quantity required : 1
