Vehicle Exploded View - VESPA VESPA PX 150 E 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

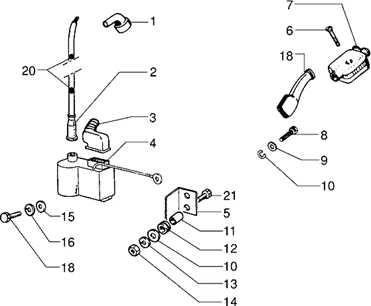

Moteur : T16 DISPOSITIF ALLUMAGE ELECTRONIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/726/Vespa_PX_150_E_1998-2005_T16.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/1/img/65991.JPG)
1 |
244395 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/6/img/65966.jpg)
2 |
231571 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/0/img/66010.jpg)
3 |
255256 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/9/img/65989.jpg)
4 |
IGNITION COIL "PIAGGIO GENUINE PART" 125 VESPA PX 1998>, 50 APE 1998> -244128 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/6/2/img/75062.jpg)
5 |
179504 - SUPPORT More informationQuantity required : 1 |
||||||
6 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/7/6/img/75076.jpg)
7 |
179895 - BASE PORTE CONNECT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/5/img/65385.jpg)
8 |
015597 - VIS S01559700 More informationQuantity required : 2 |
||||||
|
9 |
003055 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/0/img/63800.jpg)
10 |
006018 - RONDELLE S00601800 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/7/5/2/img/74752.jpg)
11 |
141589 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/7/5/3/img/74753.jpg)
12 |
SILENT BLOC FOR IGINTION COIL SUPPORT "PIAGGIO GENUINE PART" 125 VESPA PX -141590 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
13 |
016405 - RONDELLE S01640500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/8/7/8/img/73878.jpg)
14 |
020005 - ECROU S02000500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/3/img/63803.jpg)
15 |
006125 - RONDELLE S00612500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
16 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/0/img/65380.jpg)
17 |
015558 - VIS More informationQuantity required : 2 |
||||||
|
18 |
PROTECTION |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
20 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -080341 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/0/img/68770.jpg)
21 |
SCREW - (5X22) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -828662 More informationQuantity required : 2 |
