Vehicle Exploded View - VESPA VESPA PX 150 E 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

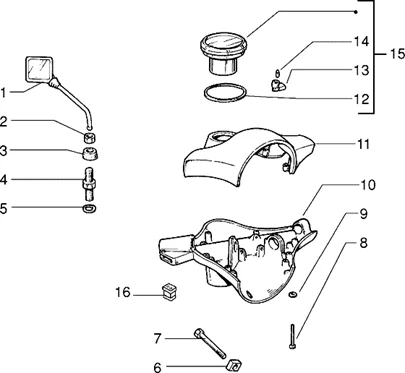

Guidon : T46 GUIDON-COMPTEUR KILOMETRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/726/Vespa_PX_150_E_1998-2005_T46.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/3/7/1/img/95371.jpg)
1 |
MIRRORS (PAIR) "PIAGGIO GENUINE PART" 125 VESPA PX 2007>2017 -CM028003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/6/2/2/img/76622.jpg)
2 |
NUT - FOR MIRROR FASTENING "PIAGGIO GENUINE PART" 125 VESPA PX, 50-125 VESPA-S, APE -227673 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/8/6/7/img/76867.jpg)
3 |
244126 - JOINT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/6/1/2/img/84612.jpg)
3 |
GASKET FOR MIRROR "PIAGGIO GENUINE PART" 125 VESPA PX -622427 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/6/0/7/img/84607.jpg)
4 |
MIRROR SUPPORT "PIAGGIO GENUINE PART" 125 VESPA PX -622391 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/6/8/8/img/73688.jpg)
5 |
007609 - RESSORT BELLEVILLE S00760900 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/1/5/3/img/74153.jpg)
6 |
070620 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/9/4/img/68294.jpg)
7 |
655554 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/8/img/65398.jpg)
8 |
015835 - VIS More informationQuantity required : 4 |
||||||
9 |
003055 - RONDELLE More informationQuantity required : 4 |
||||||
|
10 |
5637895 - PARTIE INF More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/6/1/3/img/84613.jpg)
11 |
UPPER HANDLEBAR COVER "PIAGGIO GENUINE PART" 125 VESPA PX RAW TO BE PAINT -6224306 More informationQuantity required : 1 |
||||||
|
12 |
179230 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/2/3/img/65923.jpg)
13 |
214191 - PORTE AMPOULE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
14 |
LIGHT BULB - INDICATOR LIGHT 12V-1/2W "PIAGGIO GENUINE PART" BEVERLY, X7, LIBERTY, ZIP, VESPA GTS/MOTO-GUZZI -164634 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/8/6/3/img/81863.jpg)
15 |
SPEEDOMETER "PIAGGIO GENUINE PART" 125 VESPA PX 2007> -583074 More informationQuantity required : 1 |
||||||
|
16 |
580810 - PASSE CABLES More informationQuantity required : 1 |
