Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 E4 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

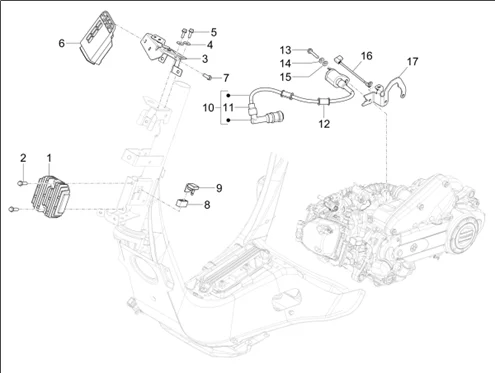

Circuit électrique : 06.06 RÉGULATEURS DE TENSION - CENTRALES ELECTRONIQUES - BOBINE H.T.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1214/Vespa_Primavera_50_E4_2024_(EMEA)_06.06.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/7/1/0/img/178710.jpg)
1 |
1A017429 - REGULATEUR DE TENSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
2 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 2 |
||||||
3 |
1B011923 - SUPPORT FOR ELECTRICAL COMPONENTS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/1/img/65421.jpg)
4 |
016603 - RONDELLE S01660300 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
5 |
830061 - VIS More informationQuantity required : 2 |
||||||
|
6 |
CM314205 - ELECTRONIC DEVICE More informationQuantity required : 1 |
||||||
|
7 |
B016793 - VIS M6X22 More informationQuantity required : 2 |
||||||
|
8 |
1D004471 - SUPPORT éLASTIQUE More informationQuantity required : 1 |
||||||
|
9 |
1D004022 - BLINKER DEVICE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/0/9/9/img/177099.jpg)
10 |
CM271706 - COMPLETE H T COIL More informationQuantity required : 1 |
||||||
|
11 |
642537 - CACHE More informationQuantity required : 1 |
||||||
|
12 |
1A010795 - PASSE CABLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/8/img/66438.jpg)
13 |
433477 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/1/img/71851.jpg)
14 |
AP8150284 - RONDELLE EVENT.EXT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/2/img/63802.jpg)
15 |
006078 - RONDELLE S00607800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
16 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -080341 More informationQuantity required : 1 |
||||||
|
17 |
1A019304 - COIL SUPPORT BRACKET WITH I P More informationQuantity required : 1 |
