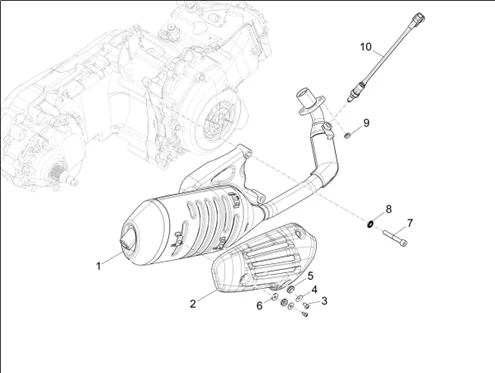

Moteur : 01.42 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1214/Vespa_Primavera_50_E4_2024_(EMEA)_01.42.png)
1 |
1A025121 - COMPLETE MUFFLER WITH MANIFOLD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/6/3/1/img/139631.jpg)
2 |
EXHAUST PROTECTION "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA, SPRINT -1A006767 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
3 |
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/0/1/1/img/93011.jpg)
4 |
844927 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/4/img/69204.jpg)
5 |
841782 - PASSE CABLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/5/img/68585.jpg)
6 |
SPACER- FOR SILENCER PROTECTION "PIAGGIO GENUINE PART" APRILIA SRV 850 201>2014, SR 50 2018/ GILERA DNA, RUNNER, STALKER, GP 800/ PIAGGIO FLY, NRG, TYPHOON, ZIP -826117 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/3/5/img/69235.jpg)
7 |
SCREW - HEX SOCKET SREW (8X80) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -842502 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
8 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/6/7/img/69067.jpg)
9 |
NUT - ON CYLINDER FOR EXHAUST FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 STROKE -833494 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/6/1/5/img/171615.jpg)
10 |
1A014335 - LAMBDA SENSOR More informationQuantity required : 1 |
