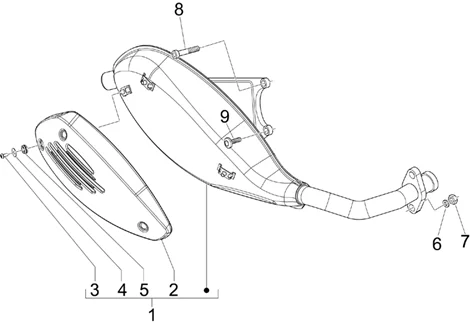

Vehicle Exploded View - VESPA VESPA LX 50 4T-4V Touring 2010-2013 VESPA

Moteur : 01.42 SILENCIEUX
Silencieux
Search
8808745 - SILENCIEUX

1
P2R reference P2R reference 93430
Maker reference Maker reference 8808745

8808745 - SILENCIEUX

More information

Quantity required : 1
EXHAUST BODY PROTECTION "PIAGGIO GENUINE PART" 50-125 LIBERTY, VESPA LX, VESPA-S, 125 VESPA GTS -8454655-

2
P2R reference P2R reference 93017
Maker reference Maker reference 8454655

EXHAUST BODY PROTECTION "PIAGGIO GENUINE PART" 50-125 LIBERTY, VESPA LX, VESPA-S, 125 VESPA GTS -8454655-

More information

Quantity required : 1
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267-

3
P2R reference P2R reference 71934
Maker reference Maker reference 1C001493

SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267-

More information

Quantity required : 3
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267-

3
P2R reference P2R reference 71934
Maker reference Maker reference AP8152267

SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267-

More information

Quantity required : 3
841821 - RONDELLE

4
P2R reference P2R reference 69207
Maker reference Maker reference 841821

841821 - RONDELLE

More information

Quantity required : 3
841782 - PASSE CABLE

5
P2R reference P2R reference 69204
Maker reference Maker reference 841782

841782 - PASSE CABLE

More information

Quantity required : 3
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187-

6
P2R reference P2R reference 69107
Maker reference Maker reference 834187

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187-

More information

Quantity required : 2
NUT - ON CYLINDER FOR EXHAUST FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 stroke -833494-

7
P2R reference P2R reference 69067
Maker reference Maker reference 833494

NUT - ON CYLINDER FOR EXHAUST FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 STROKE -833494-

More information

Quantity required : 2
297582 - VIS

8
P2R reference P2R reference 154069
Maker reference Maker reference 297582

297582 - VIS

More information

Quantity required : 1
SCREW - FOR EXHAUST "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, VESPA LX, VESPA-S, 125 FLY, X8 STREET -844470-

9
P2R reference P2R reference 69320
Maker reference Maker reference 844470

SCREW - FOR EXHAUST "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, VESPA LX, VESPA-S, 125 FLY, X8 STREET -844470-

More information

Quantity required : 1
