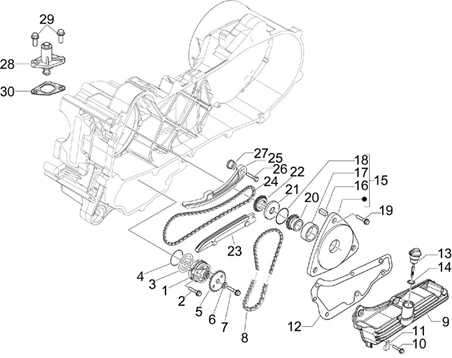

Vehicle Exploded View - VESPA VESPA LX 50 4T-4V Touring 2010-2013

	P2R reference	70649
	Maker reference	877262

OIL PUMP "PIAGGIO GENUINE PART" COMMON TO SCOOTER 50CC 4 STROKE -877262-

	P2R reference
	Maker reference	969319

POMPE HUILE

	P2R reference	66438
	Maker reference	433477

433477 - VIS

	P2R reference	66504
	Maker reference	436751

436751 - JOINT

	P2R reference	66465
	Maker reference	434947

434947 - JOINT

	P2R reference	66182
	Maker reference	287913

287913 - COURONNE

	P2R reference	66501
	Maker reference	436695

436695 - CONE ELASTIQUE 6X20

	P2R reference	72706
	Maker reference	B016426

B016426 - VIS TEF M6X14

	P2R reference	66454
	Maker reference	434447

434447 - CHAINE

	P2R reference	69331
	Maker reference	844871

MOTOR OIL CUP "PIAGGIO GENUINE PART" PIAGGIO COMMON FOR ALL SCOOTER 50CC - 4 STROKE -844871

	P2R reference	72720
	Maker reference	414837

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

	P2R reference	72720
	Maker reference	B016774

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

	P2R reference	66758
	Maker reference	487824

487824 - COLLIER

	P2R reference	70932
	Maker reference	969132

GASKET FOR OIL HOUSING "PIAGGIO GENUINE PART" COMMON FOR SCOOTER 50CC 4STROKE -969132-

	P2R reference	69325
	Maker reference	844721

OIL TANK CAP "PIAGGIO GENUINE PART" APRILIA 50 SR MOTARD 4 STROKE 2011>/ PIAGGIO 50 TYPHOON, FLY, ZIP, LIBERTY 4 STROKE/ VESPA 50 LX, SPRINT, PRIMAVERA, S 4 STROKE 2006> -844721-

	P2R reference	158280
	Maker reference	1A009397

1A009397 - JOINT "OR"

	P2R reference	158280
	Maker reference	479986

1A009397 - JOINT "OR"

	P2R reference	66555
	Maker reference	478324

TIMING SYSTEM COVER (WITH GASKET) "PIAGGIO GENUINE PART" 50 FLY 4 STROKE, LIBERTY 4 STROKE, VESPA PRIMAVERA 4 STROKE, VESPA LX 4 STROKE -478324-

	P2R reference	66447
	Maker reference	434345

434345 - TAMPON.

	P2R reference	66184
	Maker reference	2879633

SEAL RING GASKET- FOR CRANSHAFT "PIAGGIO GENUINE PART" (ON VARIATOR SIDE) PIAGGO - COMMON FOR SCOOTER 50CC 4 STROKE -2879633

	P2R reference	69332
	Maker reference	844888

WATER PUMP DRIVE GEAR GASKET "PIAGGIO GENUINE PART" 50 FLY 4 STROKE, LIBERTY 4 STROKE, ZIP 4 STROKE, VESPA LX 4 STROKE, VESPA-S 4 STROKE -844888-

	P2R reference	66655
	Maker reference	484123

484123 - VIS

	P2R reference	69068
	Maker reference	833495

OIL PUMP PINION "PIAGGIO GENUINE PART" COMMON TO THE RANGE 50CC 4 STROKE -833495

	P2R reference	66380
	Maker reference	430535

430535 - RONDELLE

	P2R reference	174697
	Maker reference	969747

9697476 - PINION

	P2R reference	174697
	Maker reference	9697476

9697476 - PINION

	P2R reference	70995
	Maker reference	969877

TIMING CHAIN SLIDING BLOCK "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 4 STROKE -969877

	P2R reference	70967
	Maker reference	96933R

TIMING CHAIN "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC 4 STROKE -96933R-

	P2R reference	68764
	Maker reference	828561

828561 - SUPPORT

	P2R reference	65640
	Maker reference	0310895

031089 - BOULON S03108900

	P2R reference	66550
	Maker reference	478247
	Replaced by référence 187400

478247 - ENTRETOISE

	P2R reference	204079
	Maker reference	82650R

82650R - TENDEUR

	P2R reference	204079
	Maker reference	289919

82650R - TENDEUR

	P2R reference	72706
	Maker reference	B016426

B016426 - VIS TEF M6X14

	P2R reference	69546
	Maker reference	847928

TIMING SYTEM TENSIONER GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -847928
