Vehicle Exploded View - VESPA VESPA LX 125 4T E3 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

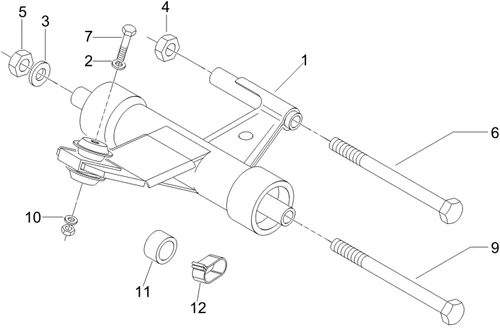

Suspensions - roues : 04.01 BRAS OSCILLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/546/Vespa_LX_125_4T_E3_2009_04.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/8/2/3/img/79823.jpg)
1 |
SWINGING ARM "PIAGGIO GENUINE PART" 50-125 VESPA LX 2006>, LXV 2006>, VESPA-S 2007> -56204R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/5/img/65715.JPG)
2 |
122781 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
3 |
178790 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/7/img/66047.jpg)
5 |
NUT - "PIAGGIO GENUINE PART" -261319- More informationQuantity required : 1 |
||||||
6 |
271779 - BOULON More informationQuantity required : 1 |
||||||
|
7 |
560045 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/3/1/9/img/82319.jpg)
9 |
SCREW - FOR SWING ARM "PIAGGIO GENUINE PARTS" 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-250-300 VESPA GTS -597914- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/9/img/68489.JPG)
10 |
709037 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/1/8/img/67018.jpg)
11 |
562310 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/0/3/4/img/80034.jpg)
12 |
564223 - RESSORT More informationQuantity required : 1 |
