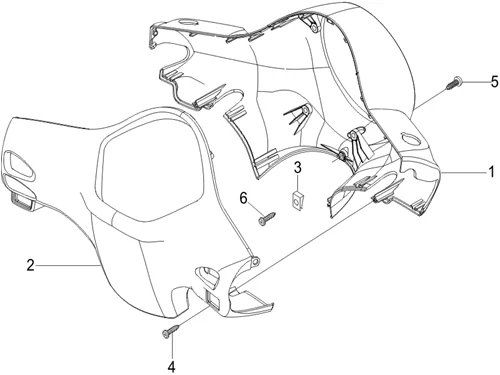

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/546/Vespa_LX_125_4T_E3_2009_03.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/4/8/3/img/87483.jpg)
1 |
FRONT HANDLEBAR COVER "PIAGGIO GENUINE PART" PIAGGIO 50-125 VESPA LX 2017> RAW TO BE PAINT -1B004447- More informationQuantity required : 1 |
||||||
1 |
65293500XN2 - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
|
1 |
65293500P2 - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/5/0/2/img/87502.jpg)
1 |
FRONT HANDLEBAR COVER "PIAGGIO GENUINE PART" 50-125 VESPA LX YELLOW 928/A -65293500GP- More informationQuantity required : 1 |
||||||
|
1 |
65293500EU - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
|
1 |
FRONT HANDLEBAR COVER "PIAGGIO GENUINE PART" PIAGGIO 50-125 VESPA LX 2017> RAW TO BE PAINT -1B004447- More informationQuantity required : 1 |
||||||
|
1 |
65293500BR - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
|
1 |
65293500AI - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
|
2 |
65293400XN2 - COUVRE GUIDON AR More informationQuantity required : 1 |
||||||
|
2 |
65293400R7 - COUVRE GUIDON AR ET4 More informationQuantity required : 1 |
||||||
|
2 |
65293400P2 - COUVRE GUIDON AR More informationQuantity required : 1 |
||||||
|
2 |
65293400GP - COUVRE GUIDON AR More informationQuantity required : 1 |
||||||
|
2 |
65293400EU - COUVRE GUIDON AR More informationQuantity required : 1 |
||||||
|
2 |
65293400DE - COUVRE GUIDON AR V.LX More informationQuantity required : 1 |
||||||
|
2 |
65293400BR - COUVRE GUIDON AR More informationQuantity required : 1 |
||||||
|
2 |
65293400AI - COUVRE GUIDON AR More informationQuantity required : 1 |
||||||
|
2 |
REAR HANDLEBAR COVER "PIAGGIO GENUINE PART" PIAGGIO VESPA 125 ET- RAW TO BE PAINTEDRE -1B004448- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
3 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017409- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/6/img/63856.jpg)
4 |
SCREW - FOR FAIRINGS FASTENING OR FLASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -008457- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
5 |
SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
6 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793- More informationQuantity required : 3 |
