Vehicle Exploded View - VESPA VESPA LX 125 4T E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

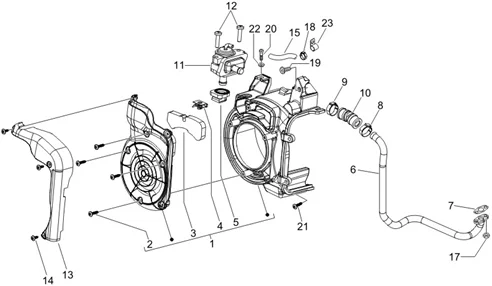

Moteur : 01.46 BOITIÎ AIR SECONDAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/547/Vespa_LX_125_4T_E3_2006-2008_01.46.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/1/8/img/69118.jpg)
1 |
COMPLETE AIR DUCT "PIAGGIO GENUINE PART" 125 VESPA LX, VESPA-S, FLY, LIBERTY, X8 STREET/APRILIA 125 SPORT-CITY, MOJITO -834473- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
2 |
SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/1/2/img/69012.jpg)
3 |
832703 - FILTRE A AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
5 |
833802 - JOINT More informationQuantity required : 1 |
||||||
|
6 |
844116 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/2/7/img/69027.jpg)
7 |
832943 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
8 |
CM002904 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
9 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/5/8/img/68958.jpg)
10 |
S.A.S. JOINING SLEEVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -831259- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/8/img/68878.jpg)
11 |
"S.A.S." VALVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250 CC -82996R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
12 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830- More informationQuantity required : 2 |
||||||
|
12 |
015760 - VIS S01577400 More informationQuantity required : 2 |
||||||
|
13 |
834476 - COUVERCLE DE PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
14 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498- More informationQuantity required : 3 |
||||||
|
15 |
845635 - TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/0/img/72900.jpg)
15 |
FUEL HOSE "PIAGGIO GENUINE PART" 125 LIBERTY, VESPA LX, VESPA-S -CM006105- More informationQuantity required : 1 |
||||||
|
16 |
843757 - BAGUE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/1/6/2/img/93162.jpg)
17 |
873409 - ECROU More informationQuantity required : 2 |
||||||
|
18 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/8/img/66038.jpg)
19 |
259577 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/8/img/127168.jpg)
20 |
1A003115 - VIS M5X25 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/0/img/68770.jpg)
21 |
SCREW - (5X22) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -828662- More informationQuantity required : 3 |
||||||
|
22 |
828583 - RONDELLE More informationQuantity required : 2 |
||||||
|
23 |
847778 - PLAQUETTE More informationQuantity required : 1 |
