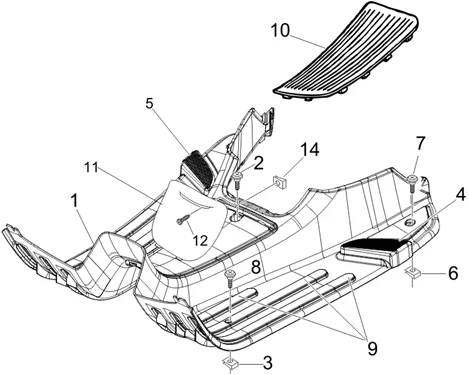

Vehicle Exploded View - VESPA VESPA LX 125 4T E3 2006-2008

	P2R reference	84253
	Maker reference	6221244087

6221244087 - TAPIS CENTRAL

	P2R reference	84251
	Maker reference	622124

6221244 - PARTIE CENTRALE BRUT

	P2R reference	84257
	Maker reference	62212440AH

FOOTREST "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S BLUE 231/A -62212440AH-

	P2R reference	84260
	Maker reference	62212440BR

62212440BR - TAPIS CENTRAL

	P2R reference	84262
	Maker reference	62212440DE

62212440DE - TAPIS CENTRAL

	P2R reference	84265
	Maker reference	62212440EP

62212440EP - TAPIS CENTRAL

	P2R reference	84266
	Maker reference	62212440EU

62212440EU - TAPIS CENTRAL

	P2R reference	84268
	Maker reference	62212440F2

FOOTREST "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S GREY 738/A -62212440F2-

	P2R reference	84269
	Maker reference	62212440F3

62212440F3 - TAPIS CENTRAL

	P2R reference	84270
	Maker reference	62212440GP

62212440GP - TAPIS CENTRAL

	P2R reference	84273
	Maker reference	62212440M4

62212440M4 - TAPIS CENTRAL

	P2R reference	84276
	Maker reference	62212440ND

62212440ND - TAPIS CENTRAL

	P2R reference	84280
	Maker reference	62212440R7

FOOTREST "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S RED 894 -62212440R7-

	P2R reference	84282
	Maker reference	62212440VG

62212440VG - TAPIS CENTRAL

	P2R reference	84284
	Maker reference	62212440XN2

62212440XN2 - TAPIS CENTRAL

	P2R reference	66035
	Maker reference	259349

SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349-

	P2R reference	95190
	Maker reference	CM017406

CM017406 - PLAQUETTE

	P2R reference	84286
	Maker reference	622125

LEFT PASSENGER FOOTREST "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -622125-

	P2R reference	84287
	Maker reference	622126

RIGHT PASSENGER FOOTREST "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -622126-

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	66107
	Maker reference	271891

SCREW - (6X30) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -271891-

	P2R reference	66301
	Maker reference	297498

SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498-

	P2R reference	89673
	Maker reference	65712645

65712645 - PROFIL MARCHE PIED (KIT)

	P2R reference	80220
	Maker reference	57345R

CENTRAL FOOTREST MAT "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -57345R-

	P2R reference	84508
	Maker reference	6221366

6221366 - ABATTANT AVT BRUT

	P2R reference	84500
	Maker reference	62213650GP

62213650GP - ABATTANT AVT

	P2R reference	84506
	Maker reference	62213650VG

62213650VG - ABATTANT AVT

	P2R reference	84509
	Maker reference	6221366087

6221366087 - ABATTANT AVT

	P2R reference	84511
	Maker reference	62213660AF

SPARK PLUG TRAPDOOR "PIAGGIO GENUINE PART" 50-125 VESPA LX BLUE 424 -62213660AF-

	P2R reference	84495
	Maker reference	62213650DE

62213650DE - ABATTANT AVT

	P2R reference	84515
	Maker reference	62213660F3

62213660F3 - ABATTANT AVT

	P2R reference	84514
	Maker reference	62213660F2

62213660F2 - ABATTANT AVT

	P2R reference	84516
	Maker reference	62213660ND

62213660ND - ABATTANT AVT

	P2R reference	84505
	Maker reference	62213650R7

SPARK PLUG TRAPDOOR "PIAGGIO GENUINE PART" 50-125 VESPA LX RED 584 -62213650R7

	P2R reference	65403
	Maker reference	0159115

015911 - VIS S01591100

	P2R reference	72924
	Maker reference	CM017408

NUT / PLATE FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM017408-
