Vehicle Exploded View - VESPA VESPA LX 125 1998-2005 VESPA

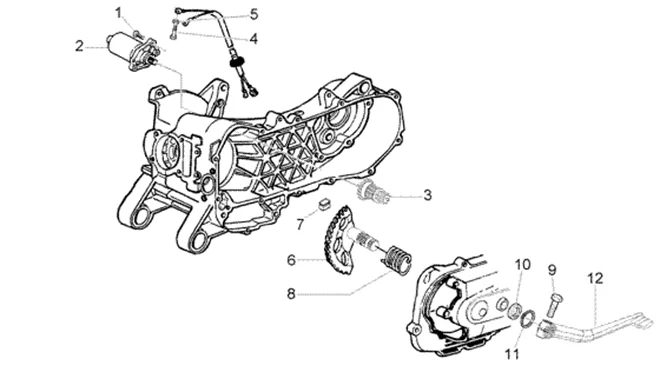

Moteur : T15 DÉMARREUR ÉLECTRIQUE-LEVIER DE DEMARRAGE
Démarreur électrique-levier de demarrage
Search
031091 - VIS

1
P2R reference P2R reference 65642
Maker reference Maker reference 0310915

031091 - VIS

More information

Quantity required : 2
ELECTRIC STARTER "PIAGGIO GENUINE PART" 125 MP3 2007>, FLY 2005, LIBERTY 2000>, X8 2004>, X9 2003>, X-EVO 2007>, VESPA GTS 2007>, VESPA LX 2007>/GILERA 125 NEXUS 2007>/APRILIA SR 2012> -82611R5-

2
P2R reference P2R reference 68587
Maker reference Maker reference 82611R5

ELECTRIC STARTER "PIAGGIO GENUINE PART" 125 MP3 2007>, FLY 2005, LIBERTY 2000>, X8 2004>, X9 2003>, X-EVO 2007>, VESPA GTS 2007>, VESPA LX 2007>/GILERA 125 NEXUS 2007>/APRILIA SR 2012> -82611R5-

More information

Quantity required : 1
ELECTRIC STARTER GEAR "PIAGGIO GENUINE PART" 125 FLY 2005>, LIBERTY 2006>, MP3 2007>, X8 2004>, X9 2005>, X EVO 2006>, VESPA LX 2005>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, ATLANTIC 2003> -82612R-

3
P2R reference P2R reference 68588
Maker reference Maker reference 82612R

ELECTRIC STARTER GEAR "PIAGGIO GENUINE PART" 125 FLY 2005>, LIBERTY 2006>, MP3 2007>, X8 2004>, X9 2005>, X EVO 2006>, VESPA LX 2005>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, ATLANTIC 2003> -82612R-

More information

Quantity required : 1
969296 - BOULON

4
P2R reference P2R reference 70959
Maker reference Maker reference 969296

969296 - BOULON

More information

Quantity required : 1
006976 - RONDELLE S00697600

5
P2R reference P2R reference 63841
Maker reference Maker reference 0069765

006976 - RONDELLE S00697600

More information

Quantity required : 1
KICKSTART SHAFT "PIAGGIO GENUINE PART" 125 LIBERTY, VESPA LX, VESPA-S -830284-

6
P2R reference P2R reference 68906
Maker reference Maker reference 830284

KICKSTART SHAFT "PIAGGIO GENUINE PART" 125 LIBERTY, VESPA LX, VESPA-S -830284-

More information

Quantity required : 1
830260 - TAMPON

7
P2R reference P2R reference 92846
Maker reference Maker reference 830260

830260 - TAMPON

More information

Quantity required : 1
RETURN SPRING FOR KICK STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -289495-

8
P2R reference P2R reference 66223
Maker reference Maker reference 289495

RETURN SPRING FOR KICK STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -289495-

More information

Quantity required : 1
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792-

9
P2R reference P2R reference 72725
Maker reference Maker reference B016792

SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792-

More information

Quantity required : 1
KICK STARTER SHAFT WASHER (16,3x23,8) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -433987-

10
P2R reference P2R reference 66443
Maker reference Maker reference 433987

KICK STARTER SHAFT WASHER (16,3X23,8) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -433987-

More information

Quantity required : 1
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006416-

11
P2R reference P2R reference 63814
Maker reference Maker reference 0064165

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006416-

More information

Quantity required : 1
827608 - LEVIER DU DEM

12
P2R reference P2R reference 92762
Maker reference Maker reference 827608

827608 - LEVIER DU DEM

More information

Quantity required : 1
