Vehicle Exploded View - VESPA VESPA LX 125 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

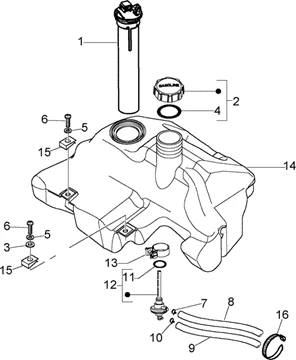

Châssis : T29 RESERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/707/Vespa_LX_125_1998-2005_T29.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/3/4/2/img/95342.jpg)
1 |
FUEL LEVEL GAUGE "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S, VESPA LXV -CM025702- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/4/img/66044.jpg)
2 |
FUEL CAP "PIAGGIO GENUINE PART" COMMON TO THE MAXISCOOTER/SCOOTER RANGE -259832- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
3 |
013880 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/6/img/66026.jpg)
4 |
FUEL CAP GASKET "PIAGGIO GENUINE PART" COMMON TO MAXISCOOTER RANGE -258160- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
5 |
016406 - RONDELLE S01640600 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
6 |
031091 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
7 |
CM002904 - COLLIER More informationQuantity required : 1 |
||||||
8 |
CM001209 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/1/img/72901.jpg)
9 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC + MAXISCOOTER 125 CC -CM006116- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
10 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE PIAGGIO RANGE -CM002901- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/5/img/65825.jpg)
11 |
FUEL TAP GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER + MAXISCOOTER -196868- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/7/3/img/68473.jpg)
12 |
FUEL TAP "PIAGGIO GENUINE PART" 50-125 FLY 2005>, LIBERTY 1998>, 50 TYPHOON 2010>, ZIP 2000>, 125 VESPA LX 2005>, VESPA GTS 2007>/APRILIA 50-125 SPORT-CITY 2008> -674594- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
13 |
FUEL TAP HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/ MAXISCOOTER -879888- More informationQuantity required : 1 |
||||||
|
14 |
FUEL TANK "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S, VESPA LXV -622834- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
15 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
16 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 1 |
