Vehicle Exploded View - VESPA VESPA GTV 300 4T 4V ie 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

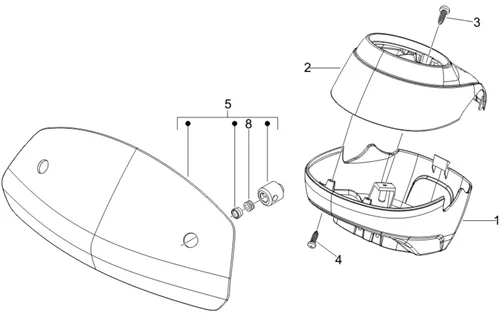

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/220/Vespa_GTV_300_4T_4V_ie_2010-2013_03.01.PNG)
1 |
624682 - CACHE DIRECTION More informationQuantity required : 1 |
||||||
|
1 |
62468200YR1 - CACHE DIRECTION More informationQuantity required : 1 |
||||||
|
1 |
62468200M9 - CACHE DIRECTION More informationQuantity required : 1 |
||||||
|
1 |
6246820090 - CACHE DIRECTION More informationQuantity required : 1 |
||||||
|
2 |
624683 - COUVRE POIGNEE More informationQuantity required : 1 |
||||||
|
2 |
6246830090 - COUVRE POIGNEE More informationQuantity required : 1 |
||||||
|
2 |
62468300M9 - COUVRE POIGNEE More informationQuantity required : 1 |
||||||
|
2 |
62468300YR1 - COUVRE POIGNEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
3 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/8/img/66038.jpg)
4 |
259577 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/3/8/6/img/85386.jpg)
5 |
WIND SCREEN (SMALL - SMOKED) "PIAGGIO GENUINE PART" 125-250VESPA GT, 250-300 VESPA GTV -624701- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/9/3/img/66993.JPG)
8 |
560173 - SILENTBLOC More informationQuantity required : 2 |
