Vehicle Exploded View - VESPA VESPA GTV 300 4T 4V ie 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

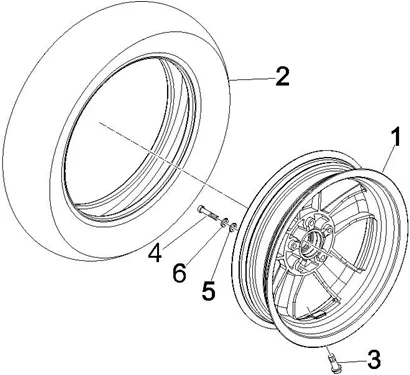

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/220/Vespa_GTV_300_4T_4V_ie_2010-2013_04.11.PNG)
1 |
647971 - ROUE AV/AR More informationQuantity required : 1 |
||||||
|
2 |
666404 - PNEU 120/70-12" MICHELIN CITY GRIP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
3 |
597679 - TUBELESS VALVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
4 |
SCREW - (8X40) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -149104- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
5 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/9/8/img/68798.jpg)
6 |
WHEEL WASHER OR CALIPER WASHER "PIAGGIO GENUINE PART" 125-300-400 MP3, 125-250-300 VESPA GTS, BEVERLY, CARNABY/GILERA 125-250-300 NEXUS -828961- More informationQuantity required : 5 |
