Vehicle Exploded View - VESPA VESPA GTS 300 VESPA GTS 300 ABS E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

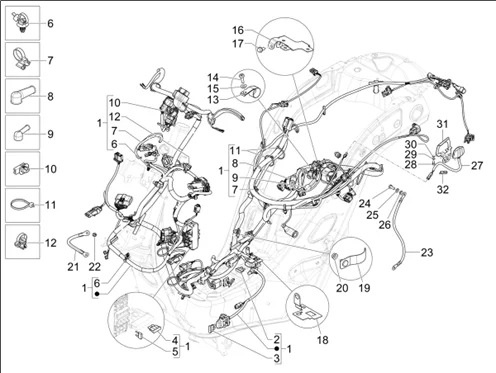

Circuit électrique : 06.08 FAISCEAU DE CÂBLES PRINCIPAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1182/VESPA_GTS_300_ABS_E5_2022_(EMEA)_06.08.png)
1 |
|
||||||
|
1 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.jpg)
2 |
CM225730 - FUSIBLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/4/img/66254.jpg)
3 |
292507 - FUSIBLE 10A More informationQuantity required : 1 |
||||||
|
4 |
292507 - FUSIBLE 10A More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
4 |
FUSE 15 AMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -290860 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/4/4/img/95744.jpg)
5 |
CM080904 - FUSIBLE 5A More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/4/5/img/95745.jpg)
5 |
CM080905 - FUSIBLE 7,5 A More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/4/6/img/95746.jpg)
5 |
CM080906 - FUSIBLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/4/7/img/95747.jpg)
5 |
CM080907 - FUSIBLE 15 A More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
6 |
1D001143 - COLLIER More informationQuantity required : 7 |
||||||
|
7 |
640879 - COLLIER More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/0/img/67200.jpg)
8 |
581061 - CAPUCHON More informationQuantity required : 1 |
||||||
|
9 |
583971 - CAPUCHON More informationQuantity required : 1 |
||||||
|
10 |
1D000129 - JOINT More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
11 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 3 |
||||||
|
12 |
1D002511 - COLLIER More informationQuantity required : 1 |
||||||
|
13 |
642044 - COLLIERS More informationQuantity required : 1 |
||||||
|
14 |
873653 - VIS TARAUD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/2/img/65342.jpg)
15 |
012528 - RONDELLE S01252800 More informationQuantity required : 1 |
||||||
|
16 |
1B003953 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/5/img/66655.jpg)
17 |
484123 - VIS More informationQuantity required : 1 |
||||||
|
18 |
641532 - ETRIER More informationQuantity required : 1 |
||||||
|
19 |
1D002123 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
20 |
241936 - ECROU More informationQuantity required : 1 |
||||||
|
21 |
581309 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/8/img/65818.jpg)
22 |
195482 - ECROU More informationQuantity required : 1 |
||||||
|
23 |
584843 - CABLE More informationQuantity required : 1 |
||||||
|
24 |
641204 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
25 |
016406 - RONDELLE S01640600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
26 |
003056 - RONDELLE More informationQuantity required : 1 |
||||||
|
27 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
28 |
SCREW - (4,70X10) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152043 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
29 |
003054 - RONDELLE S00305400 More informationQuantity required : 2 |
||||||
|
30 |
012531 - RONDELLE S01253100 More informationQuantity required : 2 |
||||||
|
31 |
1B010141 - STIRRUP More informationQuantity required : 1 |
||||||
|
32 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 1 |
